4SVPA680M

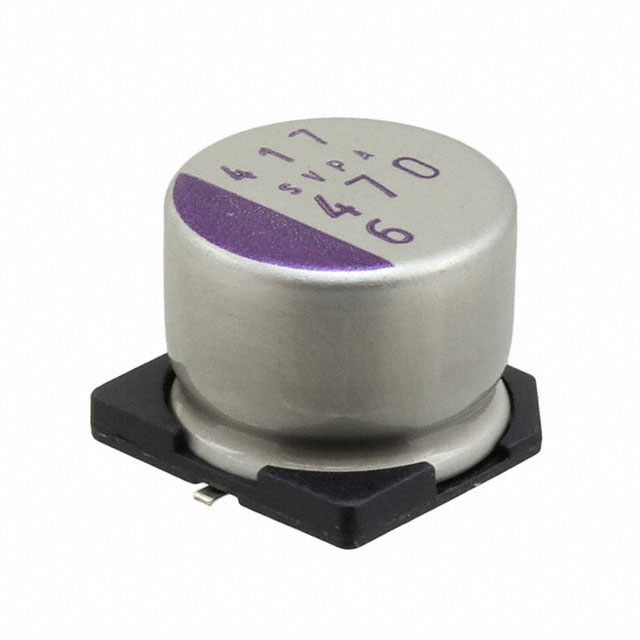

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4SVPA680M with confidence from Components-World.HK, 1 Year Warranty
Dowload 4SVPA680M Details in PDFSee Product Specifications for product details.
Buy 4SVPA680M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4SVPA680M |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM POLY 680UF 20% 4V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | 12500 pcs |
|---|---|---|---|---|---|
| $0.266 | $0.235 | $0.219 | $0.211 | $0.203 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 4SVPA680M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM POLY 680UF 20% 4V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 114844 pcs | Data sheet | SVPA |
| Category | Capacitors | Voltage - Rated | 4V |
| Type | Polymer | Tolerance | ±20% |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Size / Dimension | 0.394" Dia (10.00mm) |
| Series | OS-CON™, SVPA | Ripple Current @ Low Frequency | 206.5mA @ 120Hz |
| Ripple Current @ High Frequency | 4.13A @ 100kHz | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Radial, Can - SMD |
| Other Names | PCE5070TR | Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Manufacturer Standard Lead Time | 11 Weeks | Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.315" (8.00mm) | ESR (Equivalent Series Resistance) | 20 mOhm |
| Detailed Description | 680µF 4V Aluminum Polymer Capacitor Radial, Can - SMD 20 mOhm 2000 Hrs @ 105°C | Capacitance | 680µF |
| Applications | General Purpose |
