2SK303000L

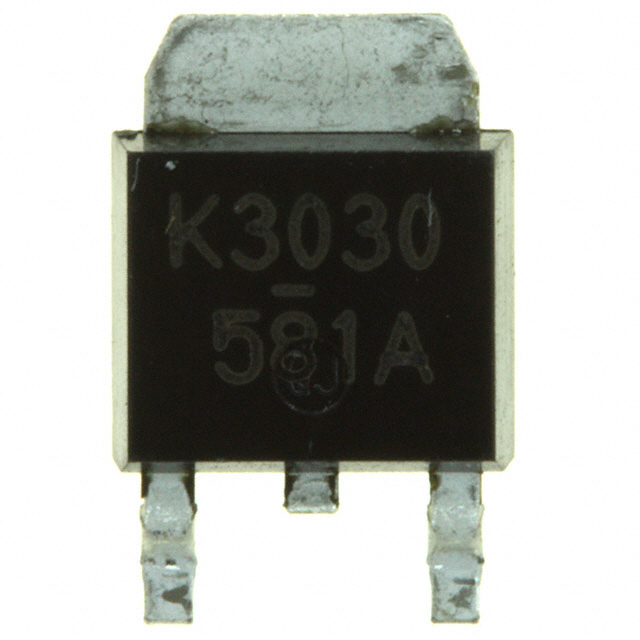

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SK303000L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SK303000L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SK303000L |
|---|---|
| Manufacturer | Panasonic |
| Description | MOSFET N-CH 100V 8A UG-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.769 | $0.694 | $0.557 | $0.434 | $0.359 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SK303000L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | MOSFET N-CH 100V 8A UG-1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66782 pcs | Data sheet | 2SK3030 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | U-G1 | Series | - |
| Rds On (Max) @ Id, Vgs | 230 mOhm @ 4A, 10V | Power Dissipation (Max) | 1W (Ta), 15W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | U-G1 |
| Other Names | 2SK303000LCT | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 290pF @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 8A (Tc) 1W (Ta), 15W (Tc) Surface Mount U-G1 | Current - Continuous Drain (Id) @ 25°C | 8A (Tc) |
