2SK302500L

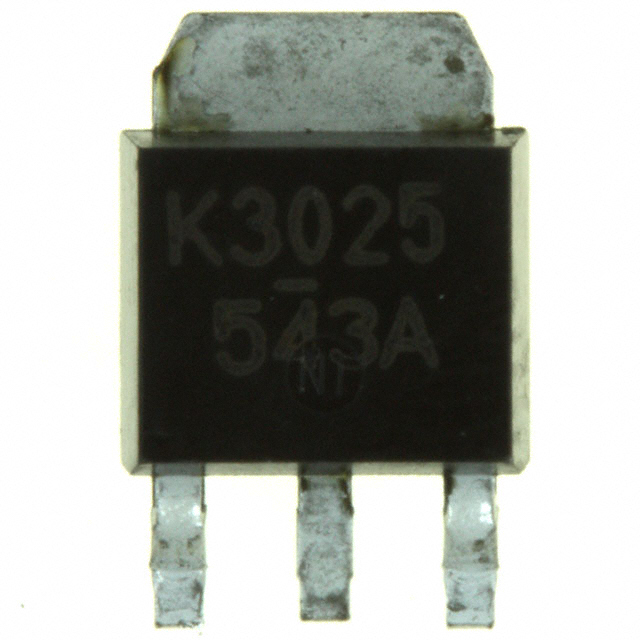

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SK302500L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SK302500L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SK302500L |
|---|---|
| Manufacturer | Panasonic |
| Description | MOSFET N-CH 60V 30A UG-2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.464 | $1.306 | $1.071 | $0.867 | $0.731 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SK302500L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | MOSFET N-CH 60V 30A UG-2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45462 pcs | Data sheet | 2SK3025 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | U-DL | Series | - |
| Rds On (Max) @ Id, Vgs | 40 mOhm @ 15A, 10V | Power Dissipation (Max) | 1W (Ta), 25W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | TO-252-4, DPak (3 Leads + Tab) |
| Other Names | 2SK302500LCT 2SK3025U0LCT 2SK3025U0LCT-ND |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1200pF @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | Drain to Source Voltage (Vdss) | 60V |
| Detailed Description | N-Channel 60V 30A (Tc) 1W (Ta), 25W (Tc) Surface Mount U-DL | Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
