2SK23800QL

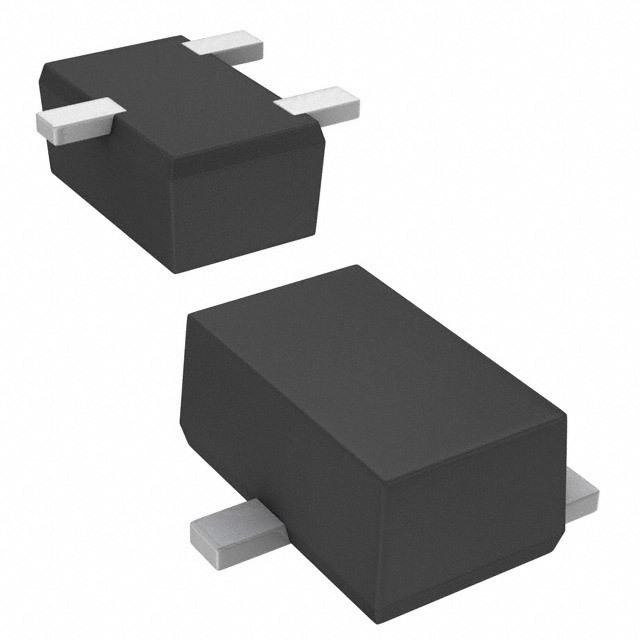

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SK23800QL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SK23800QL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SK23800QL |
|---|---|
| Manufacturer | Panasonic |
| Description | JFET N-CH 1MA 125MW SSMINI-3 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SK23800QL | Manufacturer | Panasonic |
|---|---|---|---|
| Description | JFET N-CH 1MA 125MW SSMINI-3 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4810 pcs | Data sheet | 2SK2380 Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Cutoff (VGS off) @ Id | 1.3V @ 1µA |
| Supplier Device Package | SSMini3-F2 | Series | - |
| Power - Max | 125mW | Packaging | Tape & Reel (TR) |
| Package / Case | SC-89, SOT-490 | Other Names | 2SK23800QLTR |
| Operating Temperature | 125°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1pF @ 10V | FET Type | N-Channel |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | JFET N-Channel 1mA 125mW Surface Mount SSMini3-F2 |
| Current Drain (Id) - Max | 1mA | Current - Drain (Idss) @ Vds (Vgs=0) | 50µA @ 10V |
| Base Part Number | 2SK2380 |
