2SK2299N

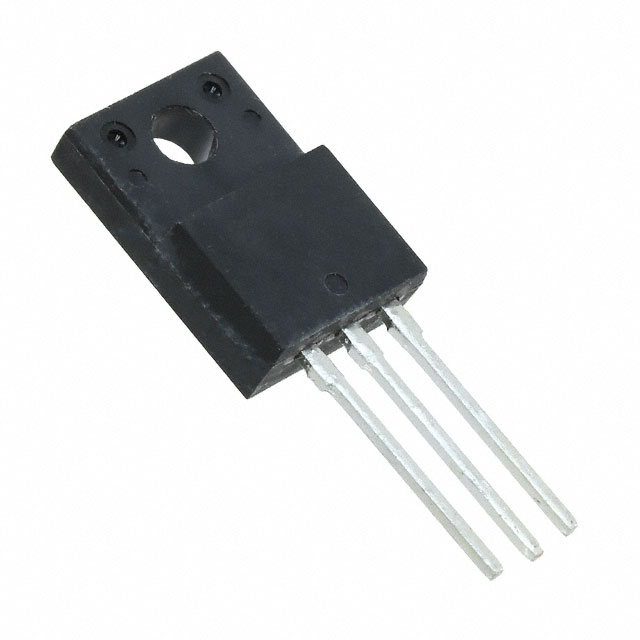

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SK2299N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SK2299N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SK2299N |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | MOSFET N-CH 450V 7A TO-220FN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SK2299N | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 450V 7A TO-220FN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5063 pcs | Data sheet | 2SK2299N |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220FN | Series | - |
| Rds On (Max) @ Id, Vgs | 1.1 Ohm @ 4A, 10V | Power Dissipation (Max) | 30W (Tc) |
| Packaging | Bulk | Package / Case | TO-220-3 Full Pack |
| Operating Temperature | 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 870pF @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 450V | Detailed Description | N-Channel 450V 7A (Ta) 30W (Tc) Through Hole TO-220FN |
| Current - Continuous Drain (Id) @ 25°C | 7A (Ta) |
