2SD245300L

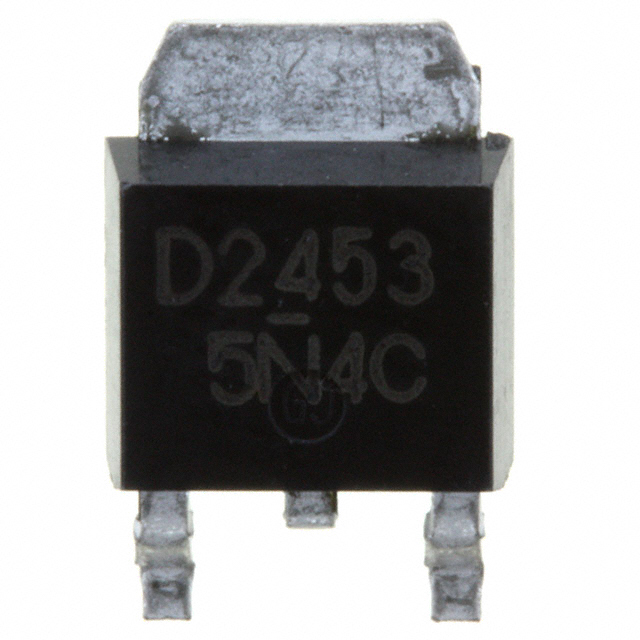

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SD245300L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SD245300L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SD245300L |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS NPN 60V 2A U-G2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SD245300L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | TRANS NPN 60V 2A U-G2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4349 pcs | Data sheet | 2SD2453 Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 60V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 2A | Transistor Type | NPN |
| Supplier Device Package | U-G2 | Series | - |
| Power - Max | 1W | Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | Other Names | 2SD245300LTR |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | 50MHz | Detailed Description | Bipolar (BJT) Transistor NPN 60V 2A 50MHz 1W Surface Mount U-G2 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 500 @ 500mA, 4V | Current - Collector Cutoff (Max) | 100µA |
| Current - Collector (Ic) (Max) | 2A | Base Part Number | 2SD2453 |
