Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > OPIA5010ATUE

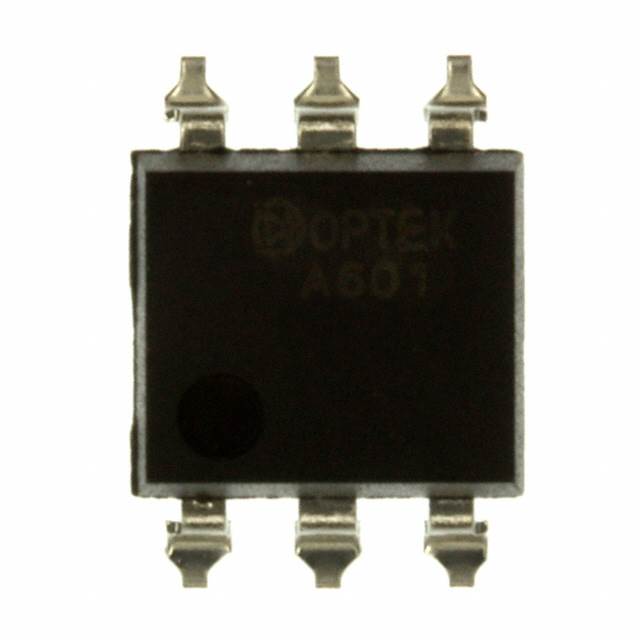

OPIA5010ATUE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OPIA5010ATUE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OPIA5010ATUE
Manufacturer	Optek Technology / TT Electronics
Description	OPTOISO 5KV DARL W/BASE 6SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4794 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	OPIA5010ATUE	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISO 5KV DARL W/BASE 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4794 pcs	Data sheet	OPIA(500B,4N3x,2x10,x010)
Category	Isolators	Voltage - Output (Max)	300V
Voltage - Isolation	5000Vrms	Voltage - Forward (Vf) (Typ)	1.2V
Vce Saturation (Max)	1.5V	Turn On / Turn Off Time (Typ)	-
Supplier Device Package	6-SMD	Series	-
Rise / Fall Time (Typ)	60µs, 50µs	Packaging	Tube
Package / Case	6-SMD, Gull Wing	Output Type	Darlington with Base
Other Names	365-1444 OPIA601ATU	Operating Temperature	-30°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Darlington with Base Output 5000Vrms 1 Channel 6-SMD
Current Transfer Ratio (Min)	600% @ 2mA	Current Transfer Ratio (Max)	9000% @ 2mA
Current - Output / Channel	150mA	Current - DC Forward (If) (Max)	50mA
