Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > OPIA4N35ATUE

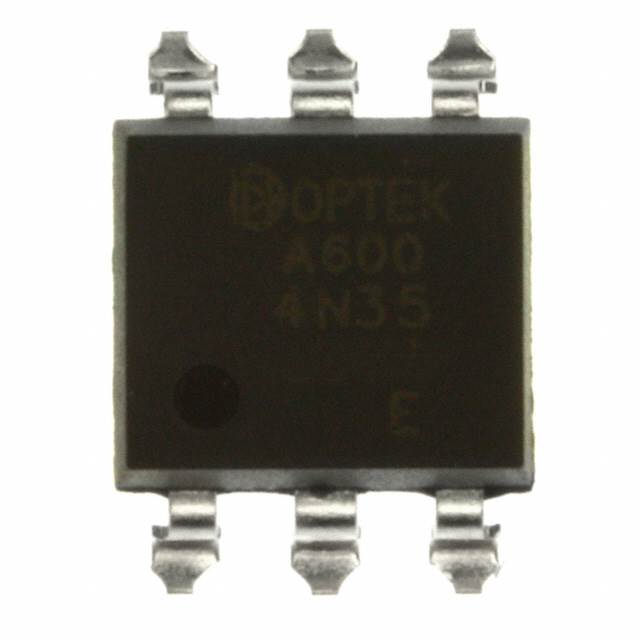

OPIA4N35ATUE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OPIA4N35ATUE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OPIA4N35ATUE
Manufacturer	Optek Technology / TT Electronics
Description	OPTOISO 5KV TRANS W/BASE 6SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4880 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	OPIA4N35ATUE	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISO 5KV TRANS W/BASE 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4880 pcs	Data sheet	OPIA(500B,4N3x,2x10,x010)
Category	Isolators	Voltage - Output (Max)	60V
Voltage - Isolation	5000Vrms	Voltage - Forward (Vf) (Typ)	1.2V
Vce Saturation (Max)	300mV	Turn On / Turn Off Time (Typ)	-
Supplier Device Package	6-SMD	Series	-
Rise / Fall Time (Typ)	5µs, 4µs	Packaging	Tube
Package / Case	6-SMD, Gull Wing	Output Type	Transistor with Base
Other Names	365-1442 OPIA600ATU	Operating Temperature	-30°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
Current Transfer Ratio (Min)	60% @ 2mA	Current Transfer Ratio (Max)	600% @ 2mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
