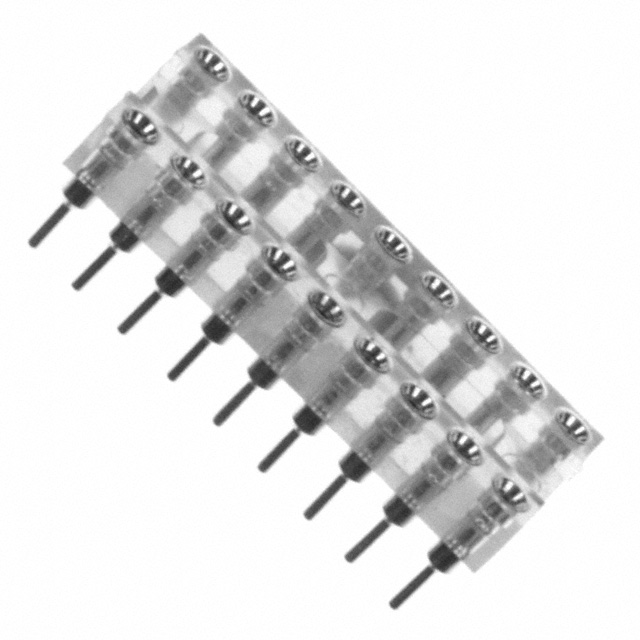

WMS-180Z
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WMS-180Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WMS-180Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WMS-180Z |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | CONN IC DIP SOCKET 18POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.348 | $0.307 | $0.289 | $0.277 | $0.265 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.241 | $0.217 | $0.193 | $0.175 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | WMS-180Z | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 18POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 131726 pcs | Data sheet | WMS-xx0Z Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | - | Termination | Solder |
| Series | WMS | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | ED2683 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 18 (2 x 9) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | - | Features | Open Frame, Wash Away |
| Current Rating | 3A | Contact Resistance | 4 mOhm |
| Contact Material - Post | Brass | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
