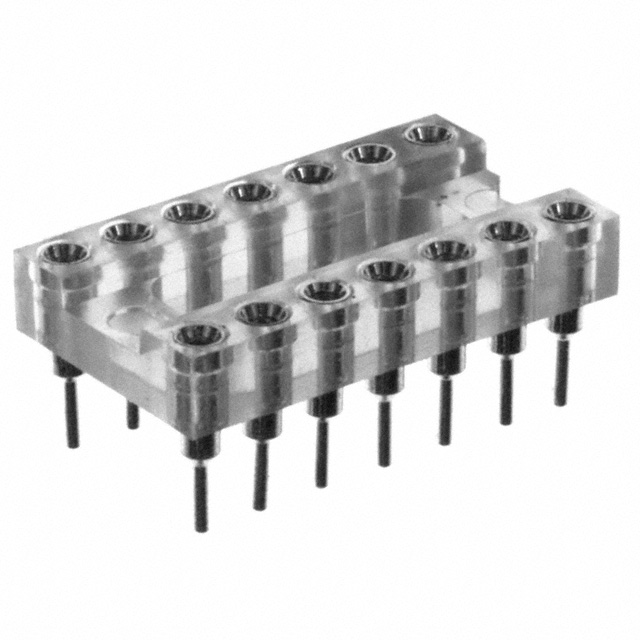

WMS-140Z
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WMS-140Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WMS-140Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WMS-140Z |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | CONN IC DIP SOCKET 14POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.133 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | WMS-140Z | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 14POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 150398 pcs | Data sheet | WMS-xx0Z Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | - | Termination | Solder |
| Series | WMS | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | ED2681 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 14 (2 x 7) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | - | Features | Open Frame, Wash Away |
| Current Rating | 3A | Contact Resistance | 4 mOhm |
| Contact Material - Post | Brass | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
