OSTTE160161

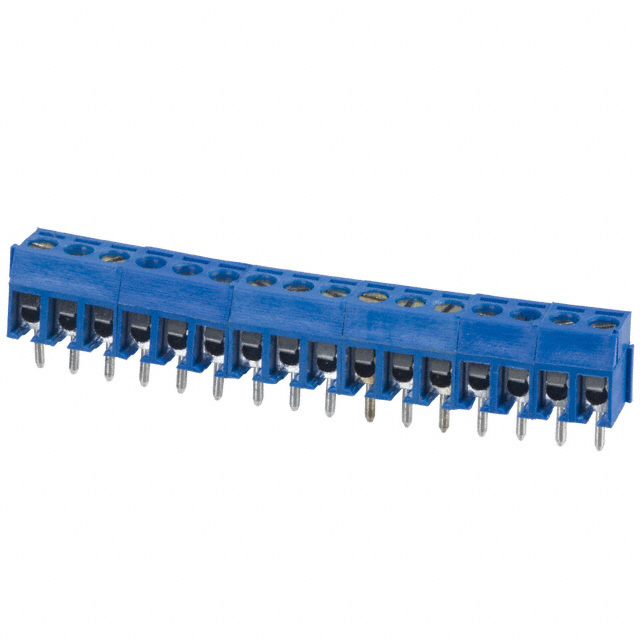

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSTTE160161 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OSTTE160161 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSTTE160161 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK 3.5MM VERT 16POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.107 | $0.844 | $0.791 | $0.703 | $0.687 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.634 | $0.573 | $0.508 | $0.477 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSTTE160161 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK 3.5MM VERT 16POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82878 pcs | Data sheet | OSTTExx0161 Drawing |
| Category | Connectors, Interconnects | Wire Termination | Screw - Leaf Spring, Wire Guard |
| Wire Gauge | 16-26 AWG | Voltage | 125V |
| Torque - Screw | 0.2 Nm (1.7 Lb-In) | Series | OSTTE |
| Screw Thread | M2 | Screw Material - Plating | Steel - Zinc Plated |
| Positions Per Level | 16 | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | ED2646 EDC555/16DS |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic |
| Features | Interlocking (Side) | Detailed Description | 16 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole |
| Current | 10A | Contact Material - Plating | Brass - Tin Plated |
| Color | Blue | Clamp Material - Plating | Steel, Stainless |
