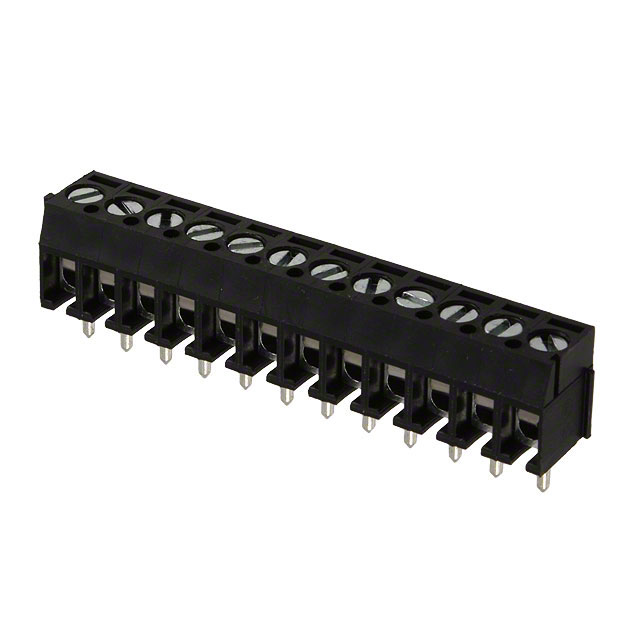

OSTTE120104
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSTTE120104 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OSTTE120104 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSTTE120104 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 3.5MM 12POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.83 | $0.628 | $0.582 | $0.524 | $0.511 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.447 | $0.409 | $0.37 | $0.326 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSTTE120104 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 3.5MM 12POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60868 pcs | Data sheet | OSTTE1201x4 Drawing |
| Category | Connectors, Interconnects | Wire Termination | Screw - Leaf Spring, Wire Guard |
| Wire Gauge | 16-26 AWG | Voltage | 125V |
| Torque - Screw | 0.2 Nm (1.7 Lb-In) | Series | OSTTE |
| Screw Thread | M2 | Screw Material - Plating | Steel - Zinc Plated |
| Positions Per Level | 12 | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | ED2737 |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic |
| Features | Interlocking (Side) | Detailed Description | 12 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole |
| Current | 10A | Contact Material - Plating | Tin Plated |
| Color | Black | Clamp Material - Plating | Steel, Stainless |
