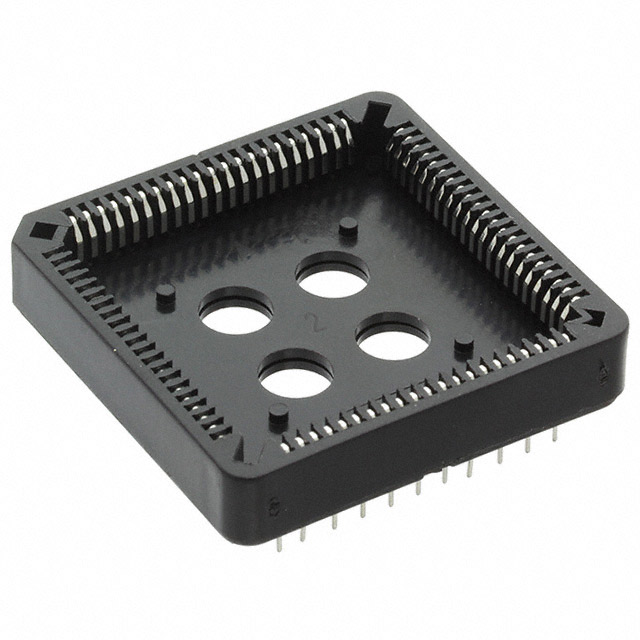

ED084PLCZ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED084PLCZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED084PLCZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED084PLCZ |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | CONN SOCKET PLCC 84POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 90 pcs | ||||
|---|---|---|---|---|---|
| $0.371 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED084PLCZ | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | CONN SOCKET PLCC 84POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102577 pcs | Data sheet | ED0-xxPLCZ Drawing |
| Category | Connectors, Interconnects | Type | PLCC |
| Termination Post Length | 0.118" (3.00mm) | Termination | Solder |
| Series | ED | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | ED3061-5 ED84PLCZ |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 84 (2x42) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT) | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | 30 mOhm |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
