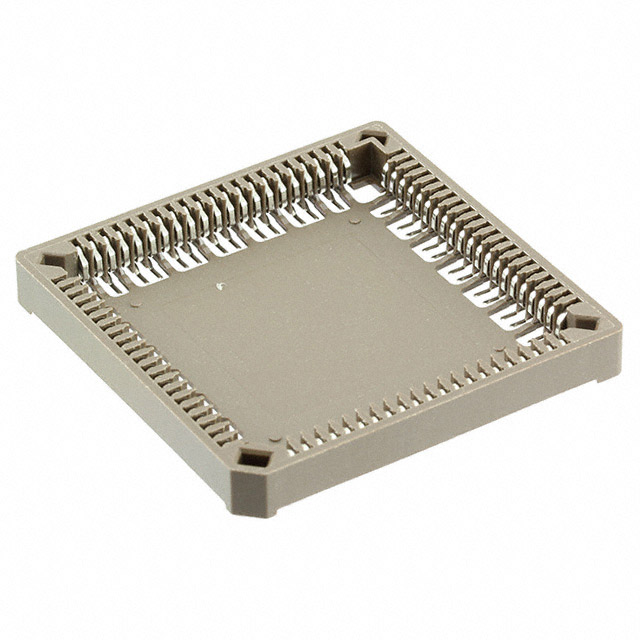

ED084PLCZ-SM-N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED084PLCZ-SM-N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED084PLCZ-SM-N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED084PLCZ-SM-N |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | CONN SOCKET PLCC 84POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 80 pcs | ||||
|---|---|---|---|---|---|
| $0.366 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED084PLCZ-SM-N | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | CONN SOCKET PLCC 84POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97517 pcs | Data sheet | ED0-xxpLCZ-SM-N Drawing |
| Category | Connectors, Interconnects | Type | PLCC |
| Termination Post Length | - | Termination | Solder |
| Series | ED | Pitch - Post | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | ED3068-5 ED84PLCZ-SM-N |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 84 (2x42) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyphenylene Sulfide (PPS) | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | 30 mOhm |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | - |
