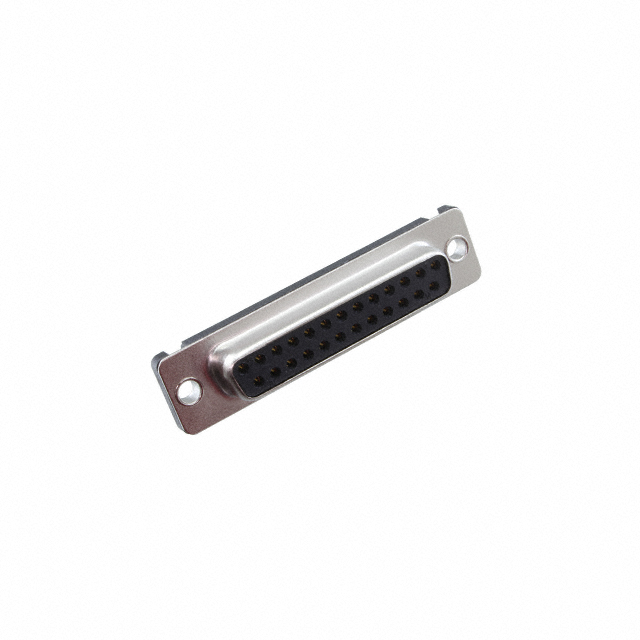

XM3F2520
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XM3F2520 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XM3F2520 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XM3F2520 |
|---|---|
| Manufacturer | Omron |
| Description | CONN D-SUB RCPT 25POS VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.758 | $3.417 | $3.332 | $3.075 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.904 | $2.648 | $2.477 | $2.468 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XM3F2520 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12949 pcs | Data sheet | XM3, XM2S Series DatasheetXM2x,XM3x Series Overview |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Nickel Plated |
| Series | XM3F | Packaging | Bulk |
| Other Names | XM3F-2520 XM3F2520-ND Z8771 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Shielded | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 16.0µin (0.41µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
