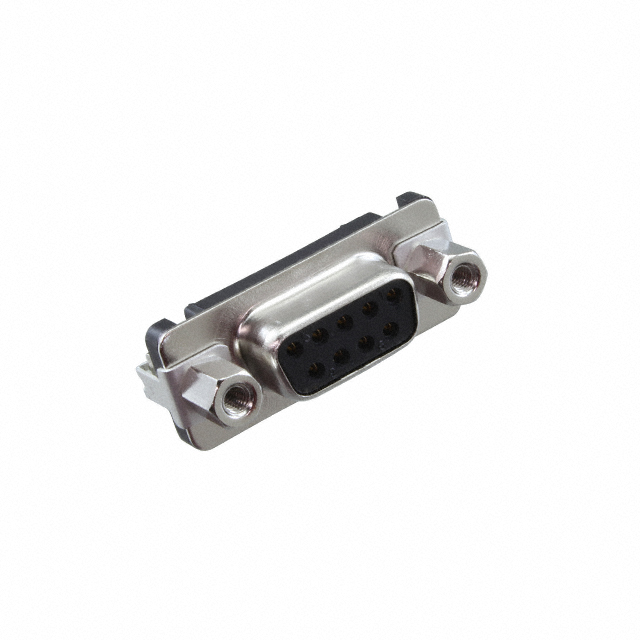

XM3F-0920-112
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XM3F-0920-112 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XM3F-0920-112 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XM3F-0920-112 |
|---|---|
| Manufacturer | Omron |
| Description | CONN D-SUB RCPT 9POS VERT SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 90 pcs | |
|---|---|---|---|---|---|
| $3.547 | $3.392 | $3.084 | $2.93 | ||
| 180 pcs | 270 pcs | 540 pcs | 1080 pcs | ||
| $2.853 | $2.544 | $2.39 | $2.227 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XM3F-0920-112 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS VERT SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16129 pcs | Data sheet | XM3, XM2S Series DatasheetXM2x,XM3x Series Overview |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | XM3F | Packaging | Tray |
| Other Names | XM3F-0920-112-ND XM3F0920112 Z8767 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Mating Side, Female Screwlock (M2.6) |
| Features | Board Lock, Shielded | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 16.0µin (0.41µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
