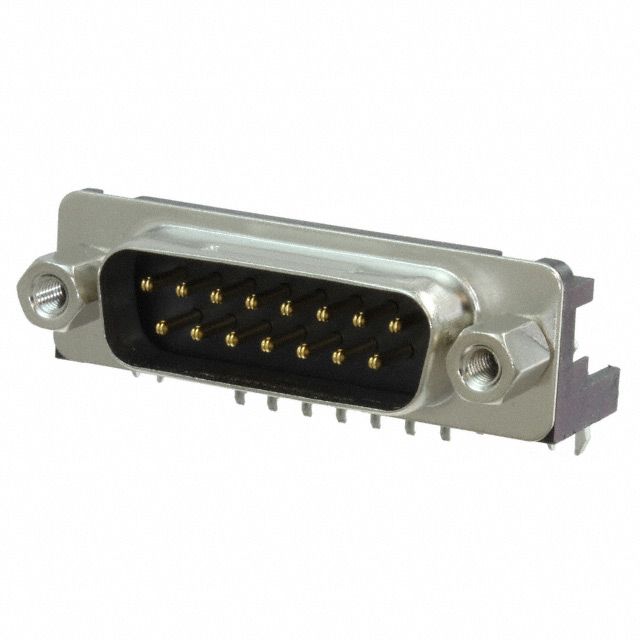

XM3C-1522-112
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XM3C-1522-112 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XM3C-1522-112 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XM3C-1522-112 |
|---|---|
| Manufacturer | Omron |
| Description | CONN D-SUB PLUG 15POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 70 pcs | |
|---|---|---|---|---|---|
| $3.373 | $3.225 | $2.932 | $2.785 | ||
| 140 pcs | 280 pcs | 560 pcs | 1050 pcs | ||
| $2.712 | $2.419 | $2.272 | $2.118 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XM3C-1522-112 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN D-SUB PLUG 15POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18025 pcs | Data sheet | XM3, XM2S Series DatasheetXM2x,XM3x Series Overview |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Nickel Plated |
| Series | XM3C | Packaging | Tray |
| Other Names | XM3C-1522-112-ND XM3C1522112 Z6595 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Mating Side, Female Screwlock (M2.6) |
| Features | Board Lock, Shielded | Detailed Description | 15 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 16.0µin (0.41µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
