XM3B0942112LS

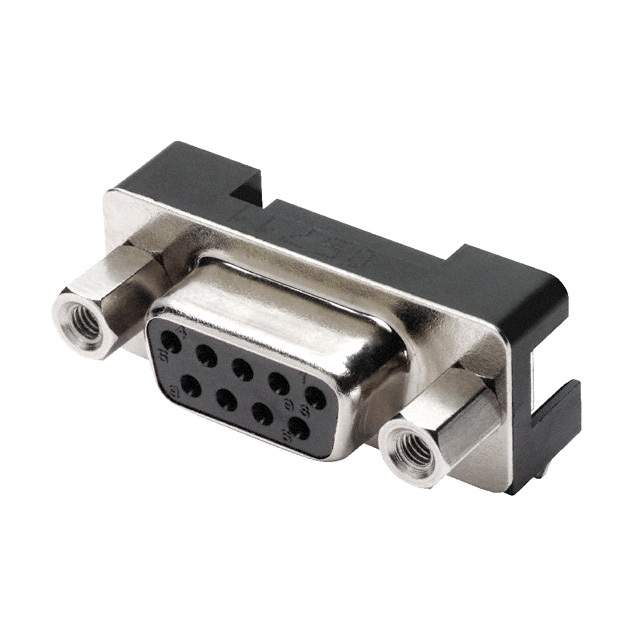

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XM3B0942112LS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XM3B0942112LS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XM3B0942112LS |
|---|---|
| Manufacturer | Omron |
| Description | CONN D-SUB RCPT 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 80 pcs | 160 pcs |
|---|---|---|---|---|---|
| $1.174 | $1.127 | $1.033 | $0.986 | $0.939 | |
| 320 pcs | 560 pcs | 1040 pcs | 2560 pcs | ||
| $0.822 | $0.798 | $0.681 | $0.678 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XM3B0942112LS | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55189 pcs | Data sheet | XM3-LS DatasheetConnector Selection Guide |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Nickel Plated |
| Series | - | Packaging | Tray |
| Other Names | XM3B-0942-112LS Z3646 |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Mating Side, Female Screwlock |
| Features | Board Lock, Shielded | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 16.0µin (0.41µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
