XJ8C-0211

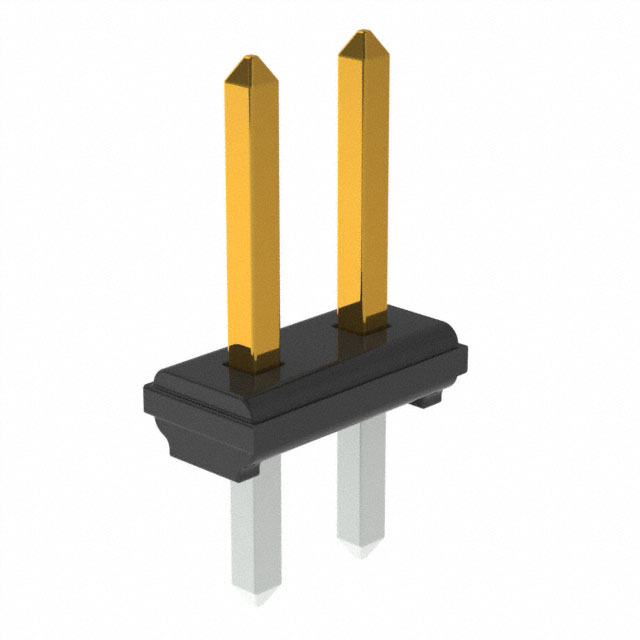

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XJ8C-0211 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XJ8C-0211 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XJ8C-0211 |
|---|---|
| Manufacturer | Omron |
| Description | CONNECTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.202 | $0.189 | $0.145 | $0.126 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.104 | $0.091 | $0.091 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XJ8C-0211 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONNECTOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 211909 pcs | Data sheet | XGx and XJ8 Guide |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | XJ8 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | 0.339" (8.60mm) |
| Other Names | XJ8C-0211-ND XJ8C0211 Z8753 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass, Nickel |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.169" (4.30mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
