XJ8B-0211

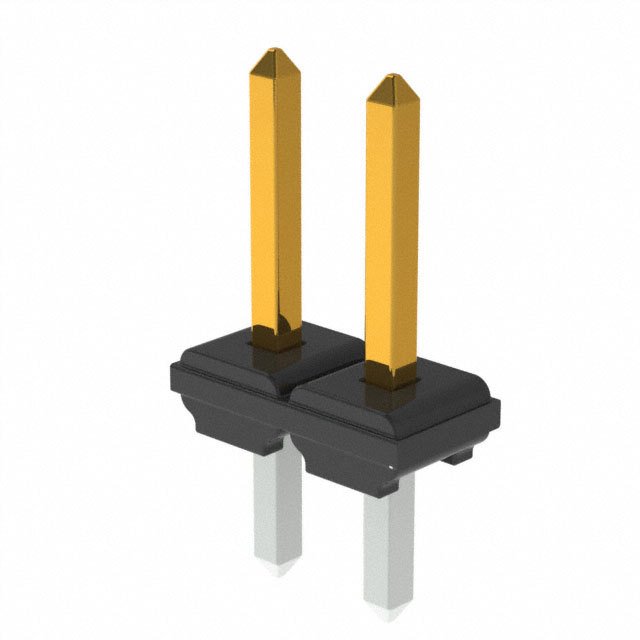

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XJ8B-0211 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XJ8B-0211 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XJ8B-0211 |
|---|---|
| Manufacturer | Omron Automation & Safety |
| Description | SENSOR I/O CONNECTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | XJ8B-0211 | Manufacturer | Omron Automation & Safety |
|---|---|---|---|
| Description | SENSOR I/O CONNECTOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4440 pcs | Data sheet | XGx and XJ8 GuideXJ8,XG8S,XG8T Series |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | XJ8 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.339" (8.60mm) |
| Other Names | XJ8B0211 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 2 position 0.100" (2.54mm) | Current Rating | 2A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass, Nickel | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.169" (4.30mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
