XF2L-2235-1A

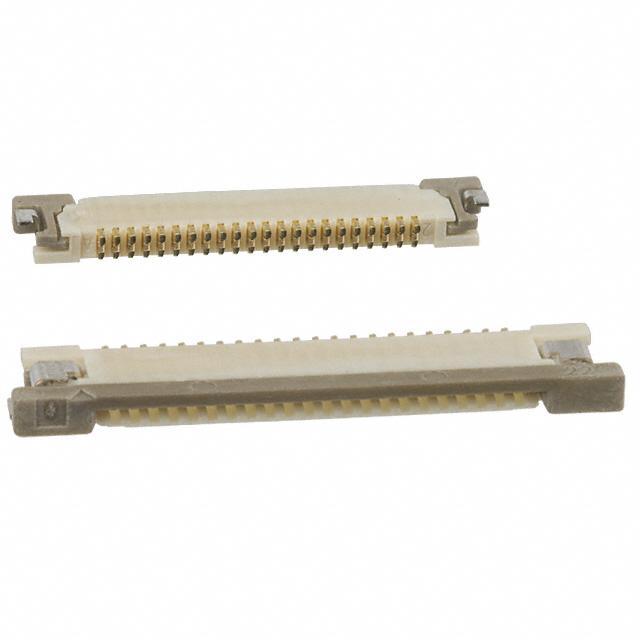

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF2L-2235-1A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF2L-2235-1A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF2L-2235-1A |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC BOTTOM 22POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.609 | $0.552 | $0.518 | $0.496 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.473 | $0.428 | $0.394 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF2L-2235-1A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC BOTTOM 22POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92248 pcs | Data sheet | XF2L Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF2L |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | OR763CT XF2L22351A |
Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 22 | Mounting Type | Surface Mount, Right Angle |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Natural |
| Height Above Board | 0.047" (1.20mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 22 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Brown |
