XF2L-1535-1A

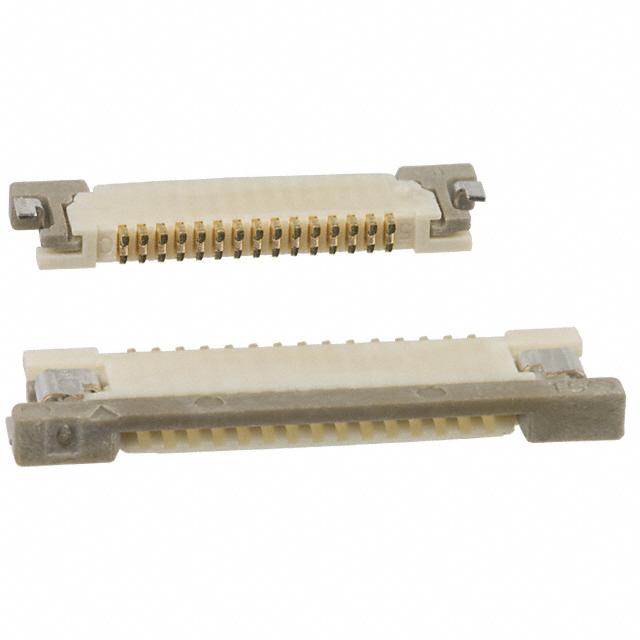

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF2L-1535-1A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF2L-1535-1A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF2L-1535-1A |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC BOTTOM 15POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.55 | $0.499 | $0.468 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.448 | $0.427 | $0.387 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF2L-1535-1A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC BOTTOM 15POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 100360 pcs | Data sheet | XF2L Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF2L |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | OR758CT | Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 15 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Natural | Height Above Board | 0.047" (1.20mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 15 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness | 5.90µin (0.150µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Actuator Color | Brown |
