Home > Products > Switches > Snap Action, Limit Switches > VX-01-3A2

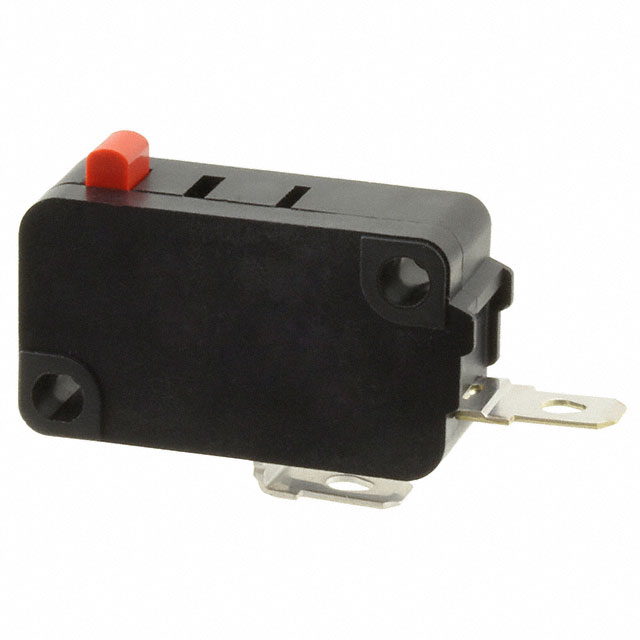

VX-01-3A2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VX-01-3A2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VX-01-3A2
Manufacturer	Omron
Description	SW SNAP ACT SPST-NO 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 44969 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$0.798

Product parameter
Data sheet

Product parameter

Part Number	VX-01-3A2	Manufacturer	Omron
Description	SW SNAP ACT SPST-NO 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44969 pcs	Data sheet	VX Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	Off-Mom	Series	VX
Release Force	3.059gf	Pretravel	0.047" (1.2mm)
Packaging	Bulk	Overtravel	0.040" (1.0mm)
Other Names	VX013A2 Z5178	Operating Temperature	-25°C ~ 80°C
Operating Position	0.579" (14.7mm)	Operating Force	25gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Features	-	Electrical Life	1,000,000 Cycles
Differential Travel	0.012" (0.3mm)	Current Rating	100mA (AC/DC)
Circuit	SPST-NO	Actuator Type	Round (Pin Plunger)
