Home > Products > Switches > Snap Action, Limit Switches > VX-01-1A2

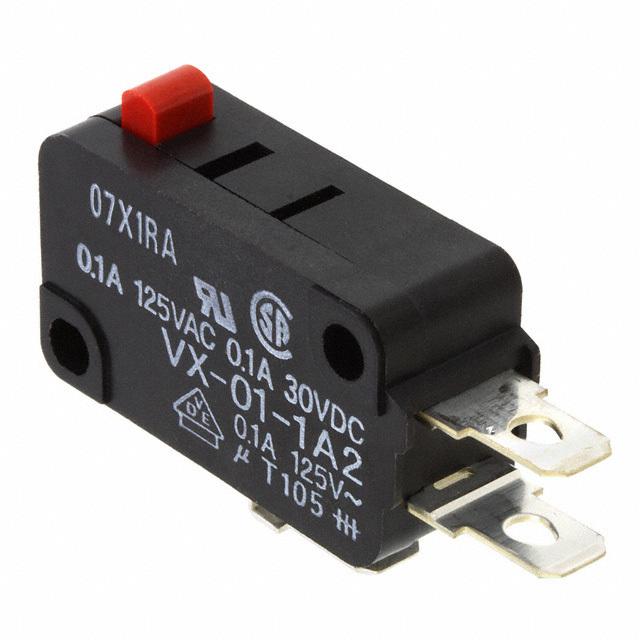

VX-01-1A2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VX-01-1A2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VX-01-1A2
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 16810 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$2.034

Product parameter
Data sheet

Product parameter

Part Number	VX-01-1A2	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16810 pcs	Data sheet	VX Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	VX
Release Force	3.059gf	Pretravel	0.047" (1.2mm)
Packaging	Bulk	Overtravel	0.040" (1.0mm)
Other Names	VX011A2	Operating Temperature	-25°C ~ 80°C
Operating Position	0.579" (14.7mm)	Operating Force	25gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP40	Features	-
Electrical Life	1,000,000 Cycles	Differential Travel	0.012" (0.3mm)
Current Rating	100mA (AC/DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
