Home > Products > Switches > Snap Action, Limit Switches > D2VW-5L1A-1HS

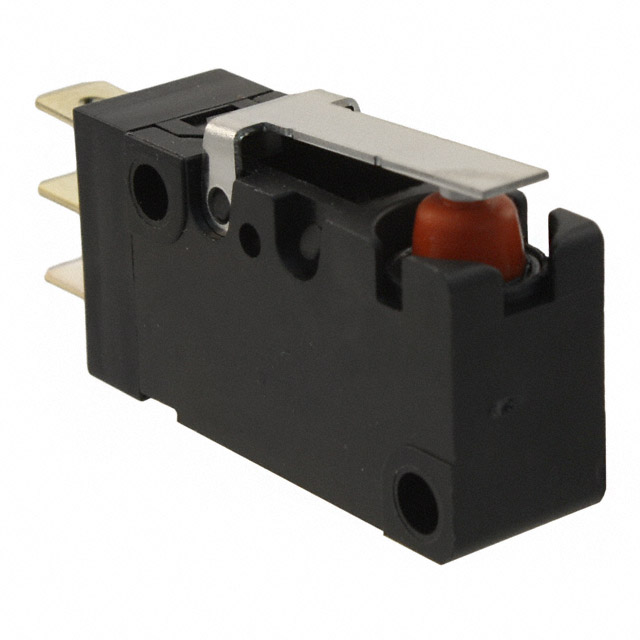

D2VW-5L1A-1HS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2VW-5L1A-1HS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2VW-5L1A-1HS
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 21342 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$1.778

Product parameter
Data sheet

Product parameter

Part Number	D2VW-5L1A-1HS	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21342 pcs	Data sheet	D2VW Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	D2VW
Release Force	20gf	Pretravel	0.063" (1.6mm)
Packaging	Bulk	Overtravel	0.030" (0.76mm)
Other Names	D2VW-5L1A-1HS-ND D2VW5L1A1HS SW1096	Operating Temperature	-40°C ~ 85°C
Operating Position	0.600" (15.2mm)	Operating Force	200gf
Mounting Type	Chassis Mount	Mechanical Life	10,000,000 Cycles
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	100,000 Cycles	Differential Travel	0.020" (0.5mm)
Current Rating	5A (AC/DC)	Circuit	SPDT
Actuator Type	Lever, Straight
