Home > Products > Switches > Snap Action, Limit Switches > D2VW-5L1-1MS

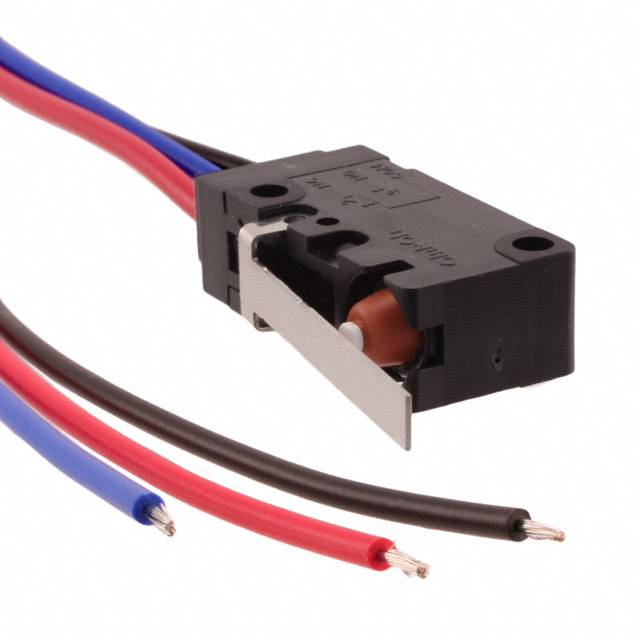

D2VW-5L1-1MS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2VW-5L1-1MS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2VW-5L1-1MS
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 18690 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	30 pcs	50 pcs
	$2.95	$2.362	$2.243	$2.184
	$1.889	$1.771	$1.683	$1.624

Product parameter
Data sheet

Product parameter

Part Number	D2VW-5L1-1MS	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18690 pcs	Data sheet	D2VW Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Wire Leads
Switch Function	On-Mom	Series	D2VW
Release Force	15gf	Pretravel	0.157" (4.0mm)
Packaging	Bulk	Overtravel	0.062" (1.6mm)
Other Names	D2VW5L11MS SW436	Operating Temperature	-40°C ~ 85°C
Operating Position	0.600" (15.2mm)	Operating Force	120gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-	Electrical Life	100,000 Cycles
Differential Travel	0.031" (0.8mm)	Current Rating	5A (AC/DC)
Circuit	SPDT	Actuator Type	Lever, Straight
