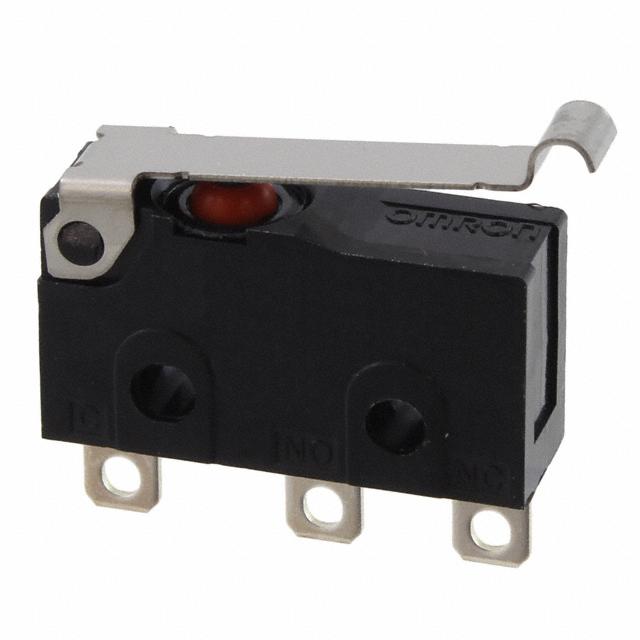

D2SW-01L3HS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-01L3HS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2SW-01L3HS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2SW-01L3HS |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.875 | $1.499 | $1.424 | $1.387 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.199 | $1.124 | $1.068 | $1.031 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2SW-01L3HS | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACT SPDT 100MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34362 pcs | Data sheet | D2SW Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Mom | Series | D2SW |
| Release Force | 6.118gf | Pretravel | - |
| Packaging | Bulk | Overtravel | 0.040" (1.0mm) |
| Other Names | D2SW-01L3HS-ND D2SW01L3HS Z10722 |
Operating Temperature | -40°C ~ 85°C |
| Operating Position | 0.420" (10.7mm) | Operating Force | 60gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mechanical Life | 5,000,000 Cycles | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Electrical Life | 200,000 Cycles |
| Differential Travel | 0.031" (0.8mm) | Current Rating | 100mA (AC/DC) |
| Circuit | SPDT | Actuator Type | Lever, Simulated Roller |
