Home > Products > Switches > Snap Action, Limit Switches > D2SW-01L2MS

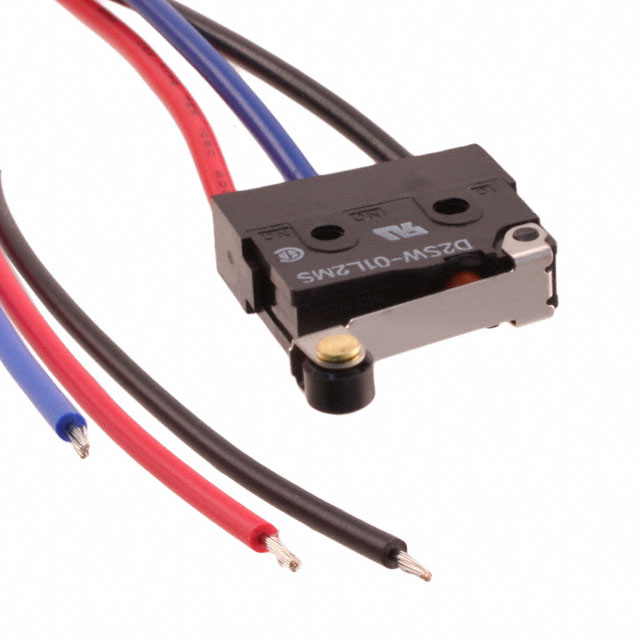

D2SW-01L2MS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-01L2MS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2SW-01L2MS
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	200 pcs	400 pcs	600 pcs	1000 pcs
~~In Stock~~ 19781 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.547	$2.837	$2.695	$2.624
	$2.27	$2.128	$2.021	$1.95

Product parameter
Data sheet

Product parameter

Part Number	D2SW-01L2MS	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19781 pcs	Data sheet	D2SW Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Wire Leads
Switch Function	On-Mom	Series	D2SW
Release Force	6.118gf	Pretravel	-
Packaging	Bulk	Overtravel	0.040" (1.0mm)
Other Names	D2SW-01L2MS-ND D2SW01L2MS SW862	Operating Temperature	-40°C ~ 85°C
Operating Position	0.571" (14.5mm)	Operating Force	60gf
Mounting Type	Chassis Mount	Mechanical Life	5,000,000 Cycles
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	200,000 Cycles	Differential Travel	0.031" (0.8mm)
Current Rating	100mA (AC/DC)	Circuit	SPDT
Actuator Type	Lever, Roller
