Home > Products > Switches > Snap Action, Limit Switches > D2JW-01K21

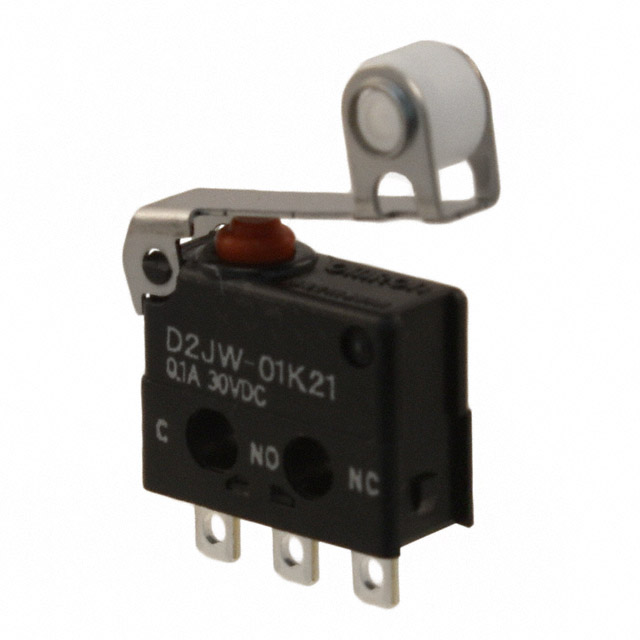

D2JW-01K21

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2JW-01K21 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2JW-01K21
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 100MA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 16476 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.128	$3.202	$3.034	$2.865
	$2.612	$2.444	$2.36	$2.275

Product parameter
Data sheet

Product parameter

Part Number	D2JW-01K21	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 100MA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16476 pcs	Data sheet	D2JW
Category	Switches	Voltage Rating - DC	30V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	D2JW	Release Force	20gf
Pretravel	0.205" (5.2mm)	Packaging	Bulk
Overtravel	0.045" (1.1mm)	Other Names	D2JW-01K21-ND D2JW01K21 SW1162
Operating Temperature	-40°C ~ 85°C	Operating Position	0.575" (14.6mm)
Operating Force	100gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	100,000 Cycles	Differential Travel	0.020" (0.5mm)
Current Rating	100mA (DC)	Circuit	SPDT
Actuator Type	Lever, Roller
