Home > Products > Switches > Snap Action, Limit Switches > D2JW-011

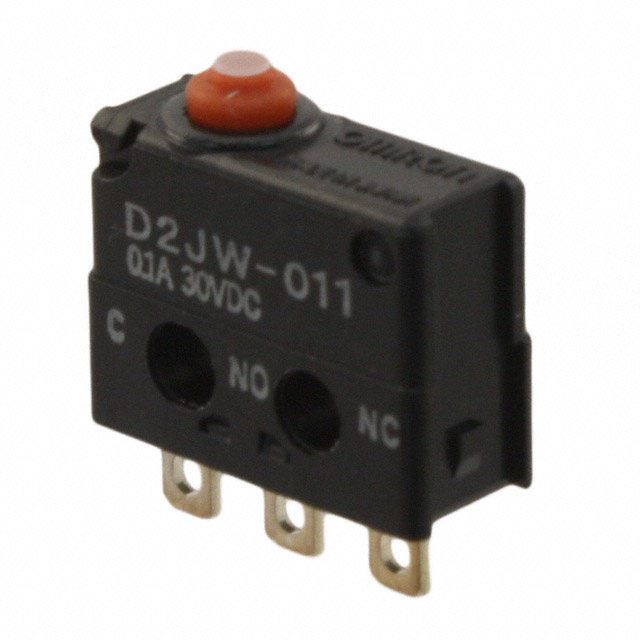

D2JW-011

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2JW-011 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2JW-011
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 100MA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 16684 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.605	$2.795	$2.648	$2.501
	$2.28	$2.133	$2.059	$1.986

Product parameter
Data sheet

Product parameter

Part Number	D2JW-011	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 100MA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16684 pcs	Data sheet	D2JW
Category	Switches	Voltage Rating - DC	30V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	D2JW	Release Force	100gf
Pretravel	0.024" (0.6mm)	Packaging	Bulk
Overtravel	0.011" (0.3mm)	Other Names	D2JW-011-ND D2JW011 SW1158
Operating Temperature	-40°C ~ 85°C	Operating Position	0.319" (8.1mm)
Operating Force	250gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	100,000 Cycles	Differential Travel	0.004" (0.1mm)
Current Rating	100mA (DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
