Home > Products > Switches > Snap Action, Limit Switches > D2HW-BR211DR

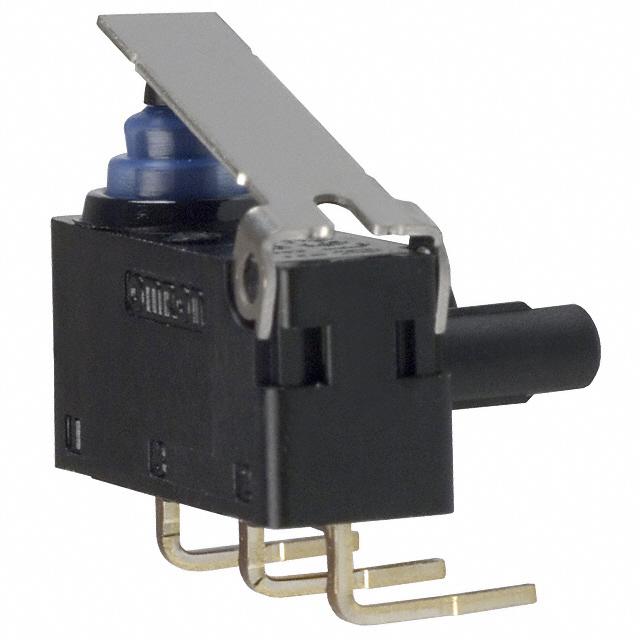

D2HW-BR211DR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2HW-BR211DR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2HW-BR211DR
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 52579 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.224	$1.129	$1.059	$1.035	$0.824
	$0.776	$0.729	$0.682	$0.635

Product parameter
Data sheet

Product parameter

Part Number	D2HW-BR211DR	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52579 pcs	Data sheet	D2HW Series
Category	Switches	Voltage Rating - DC	12V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-Mom	Series	D2HW
Release Force	7.138gf	Pretravel	-
Packaging	Bulk	Overtravel	0.062" (1.6mm)
Other Names	D2HW-BR211D BY OMR D2HWBR211DBYOMR D2HWBR211DR SW717	Operating Temperature	-40°C ~ 85°C
Operating Position	0.295" (7.5mm)	Operating Force	76gf
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	Support Posts
Electrical Life	100,000 Cycles	Differential Travel	0.020" (0.5mm)
Current Rating	100mA (AC), 2A (DC)	Circuit	SPDT
Actuator Type	Lever, Straight
