Home > Products > Switches > Snap Action, Limit Switches > D2HW-BR201M

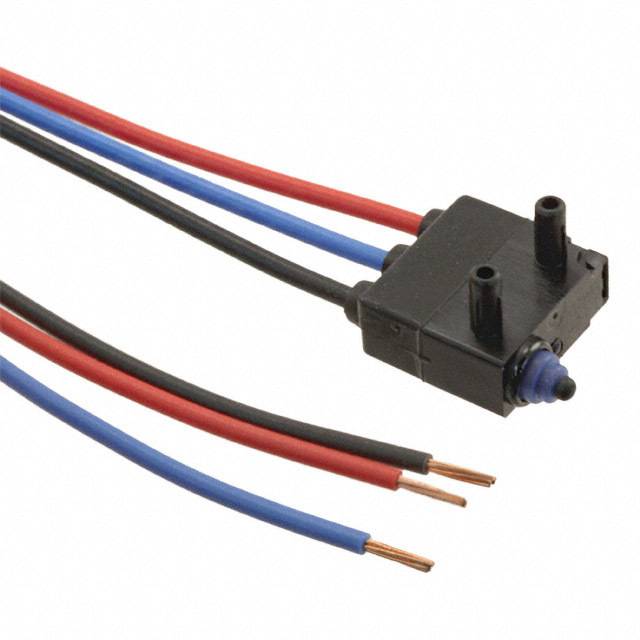

D2HW-BR201M

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2HW-BR201M with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2HW-BR201M
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 24256 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.276	$1.82	$1.729	$1.684
	$1.456	$1.365	$1.297	$1.252

Product parameter
Data sheet

Product parameter

Part Number	D2HW-BR201M	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24256 pcs	Data sheet	D2HW Series
Category	Switches	Voltage Rating - DC	12V
Voltage Rating - AC	125V	Termination Style	Wire Leads
Switch Function	On-Mom	Series	D2HW
Release Force	10gf	Pretravel	-
Packaging	Bulk	Overtravel	0.055" (1.4mm)
Other Names	D2HW-BR201M BY OMR D2HWBR201M D2HWBR201MBYOMR SW719	Operating Temperature	-40°C ~ 85°C
Operating Position	0.250" (6.4mm)	Operating Force	76gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	Support Posts	Electrical Life	100,000 Cycles
Differential Travel	0.010" (0.25mm)	Current Rating	100mA (AC), 2A (DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
