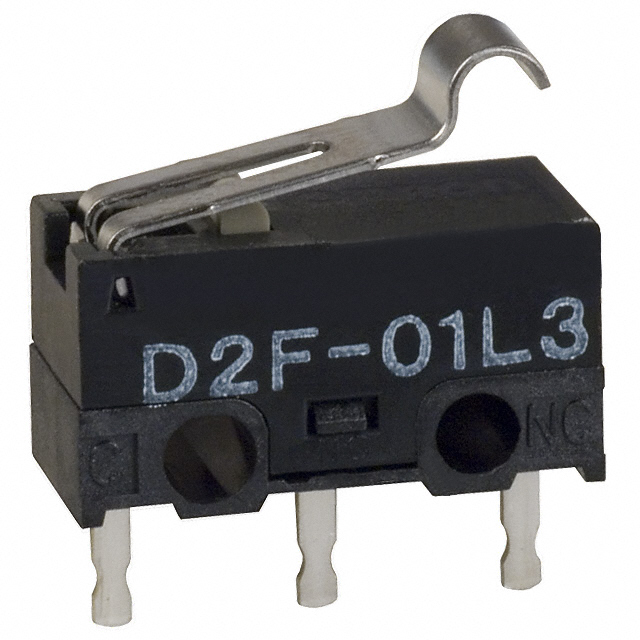

D2F-01L3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2F-01L3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2F-01L3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2F-01L3 |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACTION SPDT 100MA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.707 | $0.665 | $0.639 | $0.612 | $0.586 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.466 | $0.426 | $0.413 | $0.373 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2F-01L3 | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 100MA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 106081 pcs | Data sheet | D2F Series Datasheet~ |
| Category | Switches | Voltage Rating - DC | 30V |
| Termination Style | PC Pin | Switch Function | On-Mom |
| Series | D2F | Release Force | 5.099gf |
| Pretravel | - | Packaging | Bulk |
| Overtravel | 0.020" (0.5mm) | Other Names | B3WZ4009H D2F-01L3-ND D2F01L3 D2F01L3SIMULATEDROLLERLEV SW859 |
| Operating Temperature | -25°C ~ 65°C | Operating Position | 0.335" (8.5mm) |
| Operating Force | 80gf | Mounting Type | Through Hole |
| Mechanical Life | 1,000,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP40 | Features | - |
| Electrical Life | 100,000 Cycles | Differential Travel | 0.018" (0.45mm) |
| Current Rating | 100mA (DC) | Circuit | SPDT |
| Actuator Type | Lever, Simulated Roller |
