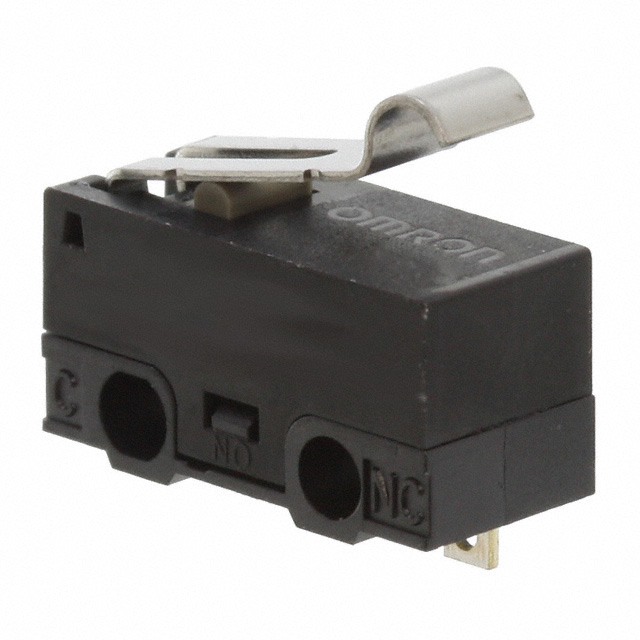

D2F-01L3-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2F-01L3-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2F-01L3-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2F-01L3-D |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACTION SPDT 100MA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.218 | $1.124 | $1.053 | $1.03 | $0.819 | |
| 250 pcs | 750 pcs | 1500 pcs | 5250 pcs | ||
| $0.772 | $0.726 | $0.679 | $0.632 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2F-01L3-D | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 100MA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55039 pcs | Data sheet | D2F Series Datasheet~ |
| Category | Switches | Voltage Rating - DC | 30V |
| Termination Style | Solder Lug | Switch Function | On-Mom |
| Series | D2F | Release Force | 5.099gf |
| Pretravel | - | Packaging | Bulk |
| Overtravel | 0.020" (0.5mm) | Other Names | D2F-01L3-D-ND D2F01L3D Z10716 |
| Operating Temperature | -25°C ~ 65°C | Operating Position | 0.335" (8.5mm) |
| Operating Force | 80gf | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP40 |
| Features | - | Electrical Life | 100,000 Cycles |
| Differential Travel | 0.018" (0.45mm) | Current Rating | 100mA (DC) |
| Circuit | SPDT | Actuator Type | Lever, Simulated Roller |
