Home > Products > Switches > Snap Action, Limit Switches > D2F-01FL-D

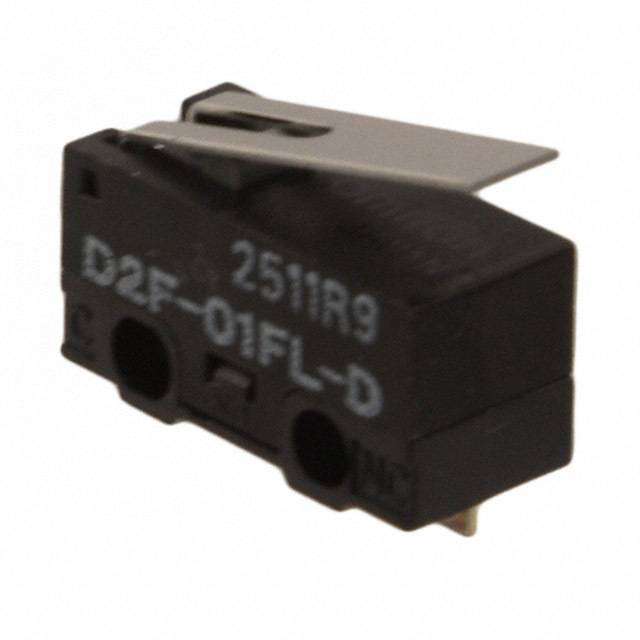

D2F-01FL-D

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2F-01FL-D with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2F-01FL-D
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 100MA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 65978 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.046	$0.966	$0.906	$0.886	$0.705
	$0.664	$0.624	$0.584	$0.544

Product parameter
Data sheet

Product parameter

Part Number	D2F-01FL-D	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 100MA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65978 pcs	Data sheet	D2F Series Datasheet~
Category	Switches	Voltage Rating - DC	30V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	D2F	Release Force	2.039gf
Pretravel	-	Packaging	Bulk
Overtravel	0.022" (0.55mm)	Other Names	D2F-01FL-D-ND D2F01FLD SW1145
Operating Temperature	-25°C ~ 65°C	Operating Position	0.268" (6.8mm)
Operating Force	25gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP40	Features	-
Electrical Life	100,000 Cycles	Differential Travel	0.020" (0.5mm)
Current Rating	100mA (DC)	Circuit	SPDT
Actuator Type	Lever, Straight
