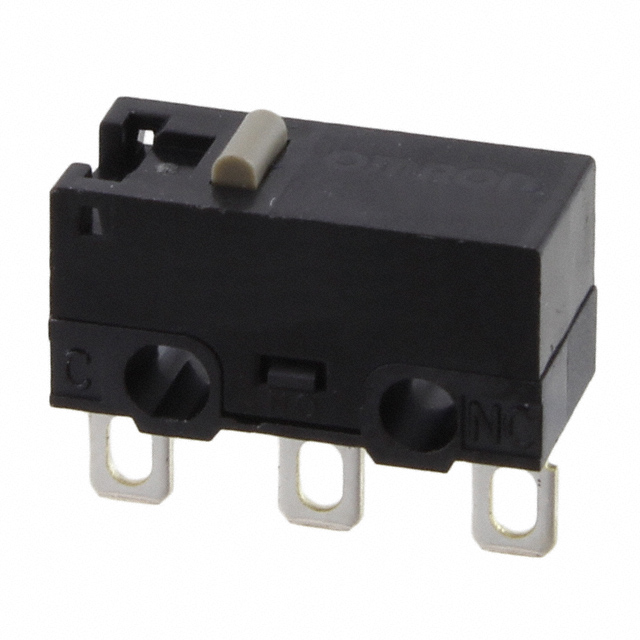

D2F-01F-D3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2F-01F-D3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2F-01F-D3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2F-01F-D3 |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACTION SPDT 100MA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.58 | $0.547 | $0.525 | $0.503 | $0.481 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.383 | $0.35 | $0.339 | $0.306 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2F-01F-D3 | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 100MA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76835 pcs | Data sheet | D2F Series Datasheet~ |
| Category | Switches | Voltage Rating - DC | 30V |
| Termination Style | Solder Lug | Switch Function | On-Mom |
| Series | D2F | Release Force | 5.099gf |
| Pretravel | 0.020" (0.5mm) | Packaging | Bulk |
| Overtravel | 0.010" (0.25mm) | Other Names | D2F01FD3 Z4695 |
| Operating Temperature | -25°C ~ 65°C | Operating Position | 0.217" (5.5mm) |
| Operating Force | 75gf | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP40 | Features | - |
| Electrical Life | 100,000 Cycles | Differential Travel | 0.005" (0.12mm) |
| Current Rating | 100mA (DC) | Circuit | SPDT |
| Actuator Type | Round (Pin Plunger) |
