WV-T264-101E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WV-T264-101E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WV-T264-101E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WV-T264-101E |
|---|---|
| Manufacturer | Ohmite |

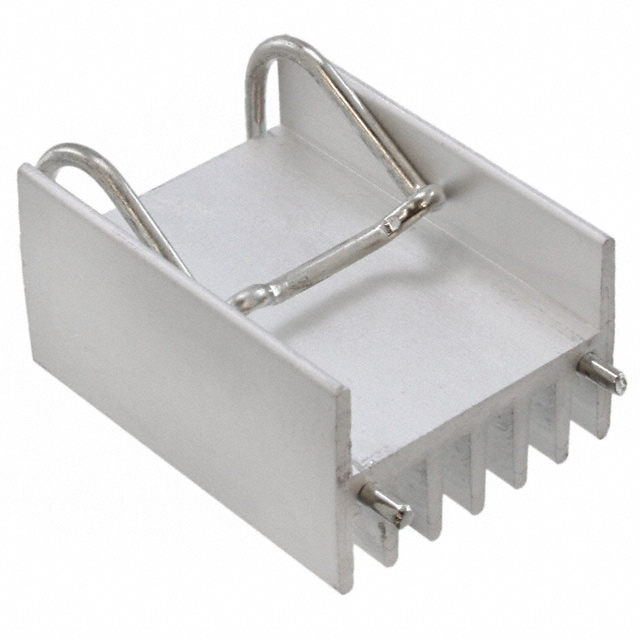

| Description | HEATSINK W/CLIP FOR TO-264 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.772 | $0.751 | $0.73 | $0.69 | $0.649 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.609 | $0.588 | $0.527 | $0.517 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | WV-T264-101E | Manufacturer | Ohmite |
|---|---|---|---|
| Description | HEATSINK W/CLIP FOR TO-264 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60043 pcs | Data sheet | W Series |
| Category | Fans, Thermal Management | Width | 0.921" (23.40mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 12.00°C/W |
| Thermal Resistance @ Forced Air Flow | 8.00°C/W @ 500 LFM | Shape | Rectangular, Fins |
| Series | W | Power Dissipation @ Temperature Rise | 1.0W @ 20°C |
| Package Cooled | TO-264 | Other Names | WVT264101E |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Unfinished |
| Material | Aluminum | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 1.260" (32.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.630" (16.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-264 Aluminum 1.0W @ 20°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
