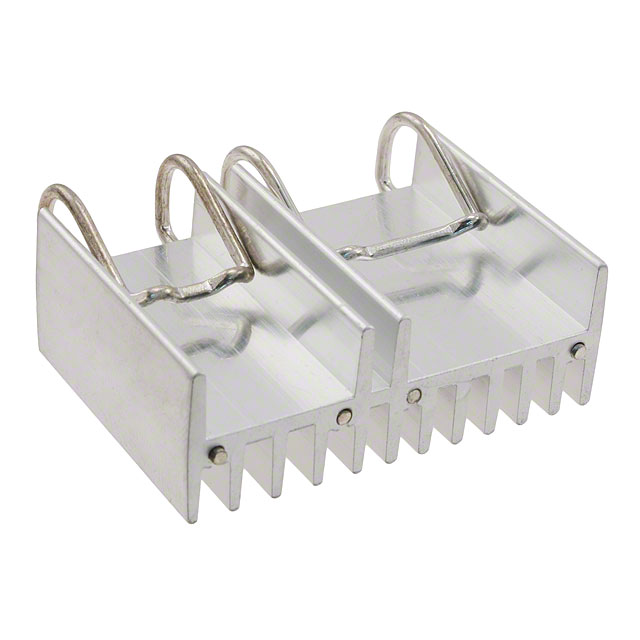

WV-DT2-101E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WV-DT2-101E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WV-DT2-101E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WV-DT2-101E |
|---|---|
| Manufacturer | Ohmite |
| Description | HEATSINK DUAL FOR TO-220/247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.142 | $1.113 | $1.083 | $1.023 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.963 | $0.903 | $0.873 | $0.782 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | WV-DT2-101E | Manufacturer | Ohmite |
|---|---|---|---|
| Description | HEATSINK DUAL FOR TO-220/247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50474 pcs | Data sheet | W Series |
| Category | Fans, Thermal Management | Width | 1.710" (43.43mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 6.00°C/W |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | W | Power Dissipation @ Temperature Rise | 4.0W @ 40°C |
| Package Cooled | TO-220, TO-247 (Dual) | Other Names | WVDT2101E |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Degreased |
| Material | Aluminum | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 1.200" (30.48mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.630" (16.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220, TO-247 (Dual) Aluminum 4.0W @ 40°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
