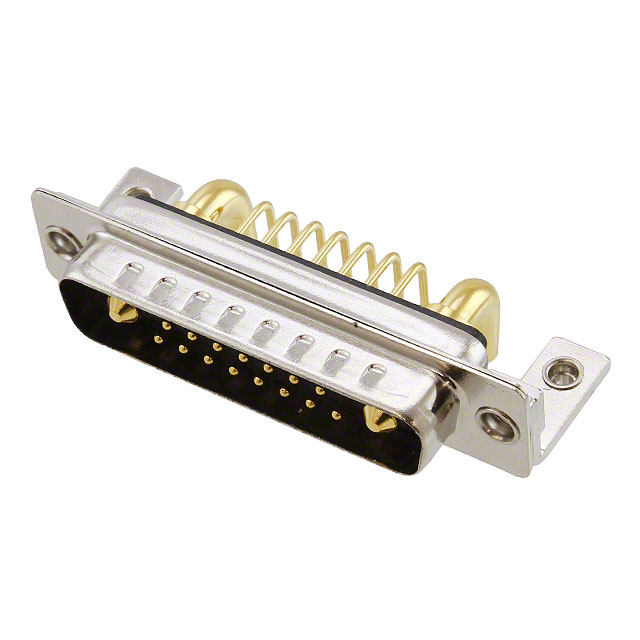

684S17W2103L461
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 684S17W2103L461 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 684S17W2103L461 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 684S17W2103L461 |
|---|---|
| Manufacturer | NorComp Inc. |
| Description | CONN D-SUB PLUG 17POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $4.828 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 684S17W2103L461 | Manufacturer | NorComp Inc. |
|---|---|---|---|
| Description | CONN D-SUB PLUG 17POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7267 pcs | Data sheet | Seal-D® Brochure684S17W2103L461 Drawing |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Brass |
| Voltage | - | Type Attributes | IP67 - Dust Tight, Waterproof |
| Termination | Solder | Stacking Direction | Signal and Power |
| Shell Size - Insert (Convert From) | Steel, Nickel Plated | Series | Seal-D 684S |
| RoHS Status | Tray | Pitch - Connector | - |
| Other Names | NOR1260 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 17 (15 + 2 Power) |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Manufacturer Part Number | 684S17W2103L461 | Length - Threaded Portion Below Head | 0.401" (10.20mm) |
| Features | Board Lock, Grounding Indents, Mounting Brackets | Expanded Description | 17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector, Board Edge, Through Hole, Right Angle Solder |
| Description | CONN D-SUB PLUG 17POS R/A SOLDER | Current Rating (Per Contact) | Housing/Shell (4-40) |
| Current Rating | 5A, 40A | Contact Form | 3 (DB, B) - 17W2 |
| Contact Finish Thickness | Gold | Connector Usage | D-Sub, Combo |
| Connector Type | Plug, Male Pins | Color | - |
| Cable Opening | Polybutylene Terephthalate (PBT) | Cable Diameter | Flash |
| Backset Spacing | Machined |
