684S11W1103L461

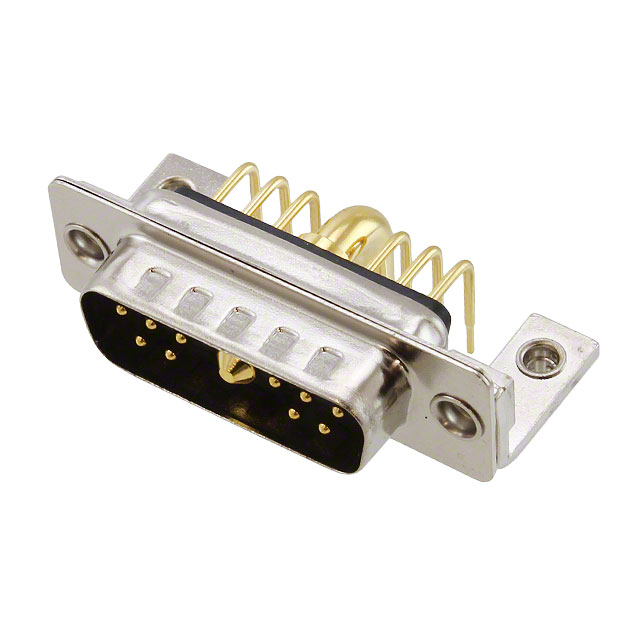

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 684S11W1103L461 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 684S11W1103L461 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 684S11W1103L461 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB PLUG 11POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 70 pcs | ||||
|---|---|---|---|---|---|
| $4.042 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 684S11W1103L461 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB PLUG 11POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9795 pcs | Data sheet | Seal-D® Brochure684S11W1103L461 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) - 11C1, 11W1 | Shell Material, Finish | Steel, Nickel Plated |
| Series | Seal-D 684S | Packaging | Tray |
| Other Names | NOR1265 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 11 (10 + 1 Power) |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Grounding Indents, Mounting Brackets | Detailed Description | 11 (10 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 5A, 40A | Contact Type | Signal and Power |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | 0.401" (10.20mm) |
