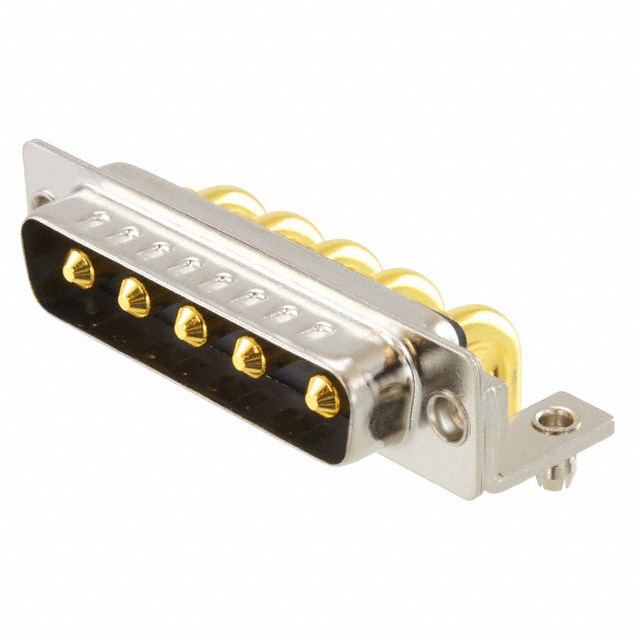

684M5W5103L461
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 684M5W5103L461 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 684M5W5103L461 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 684M5W5103L461 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB PLUG 5POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.10 | $4.635 | $4.519 | $4.171 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.94 | $3.592 | $3.36 | $3.082 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 684M5W5103L461 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB PLUG 5POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11484 pcs | Data sheet | 684M5W5103L461 DrawingPower-D Sales Sheet |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) - 5W5 | Shell Material, Finish | Steel, Nickel Plated |
| Series | 684M | Packaging | Tray |
| Other Names | NOR1348 | Operating Temperature | -55°C ~ 155°C |
| Number of Rows | 1 | Number of Positions | 5 (Power) |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Grounding Indents, Mounting Brackets | Detailed Description | 5 (Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 40A | Contact Type | Power |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | 0.551" (14.00mm) |
