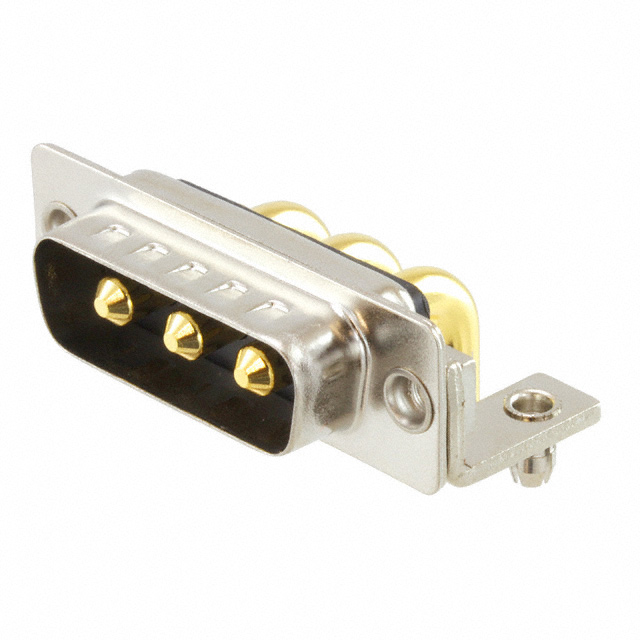

684M3W3103L461
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 684M3W3103L461 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 684M3W3103L461 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 684M3W3103L461 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB PLUG 3POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 70 pcs | |
|---|---|---|---|---|---|
| $4.031 | $3.856 | $3.505 | $3.33 | ||
| 140 pcs | 280 pcs | 560 pcs | 1050 pcs | ||
| $3.242 | $2.892 | $2.717 | $2.401 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 684M3W3103L461 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB PLUG 3POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15161 pcs | Data sheet | Power-D Sales Sheet684M3W3103L461 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) - 3W3 | Shell Material, Finish | Steel, Nickel Plated |
| Series | 684M | Packaging | Tray |
| Other Names | NOR1345 | Operating Temperature | -55°C ~ 155°C |
| Number of Rows | 1 | Number of Positions | 3 (Power) |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Grounding Indents, Mounting Brackets | Detailed Description | 3 (Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 40A | Contact Type | Power |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | 0.520" (13.20mm) |
