680S21WA4PL401

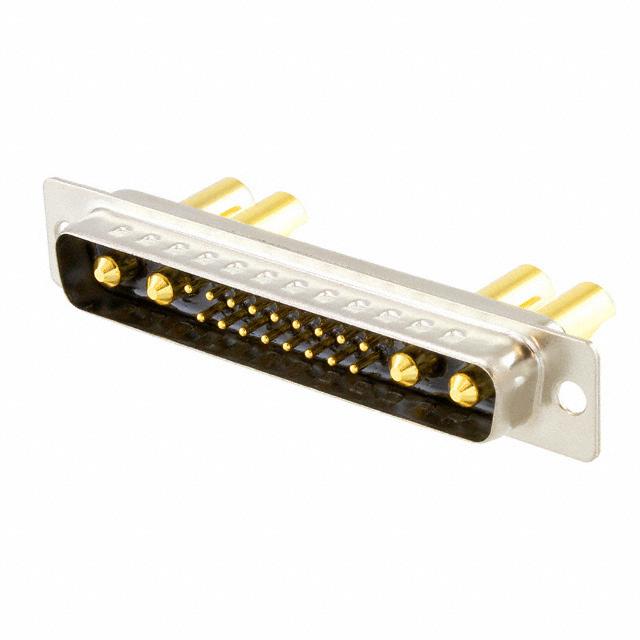

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 680S21WA4PL401 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 680S21WA4PL401 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 680S21WA4PL401 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB PLUG 21POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $6.794 | $6.307 | $5.66 | $5.499 | ||
| 120 pcs | 280 pcs | 520 pcs | |||
| $4.852 | $4.528 | $4.431 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 680S21WA4PL401 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB PLUG 21POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8857 pcs | Data sheet | Seal-D® Brochure680S21WA4PLxx1 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 4 (DC, C) - 21WA4 | Shell Material, Finish | Steel, Nickel Plated |
| Series | Seal-D 680S | Packaging | Tray |
| Other Names | NOR1227 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 21 (17 + 4 Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 21 (17 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 5A, 40A | Contact Type | Signal and Power |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | - |
