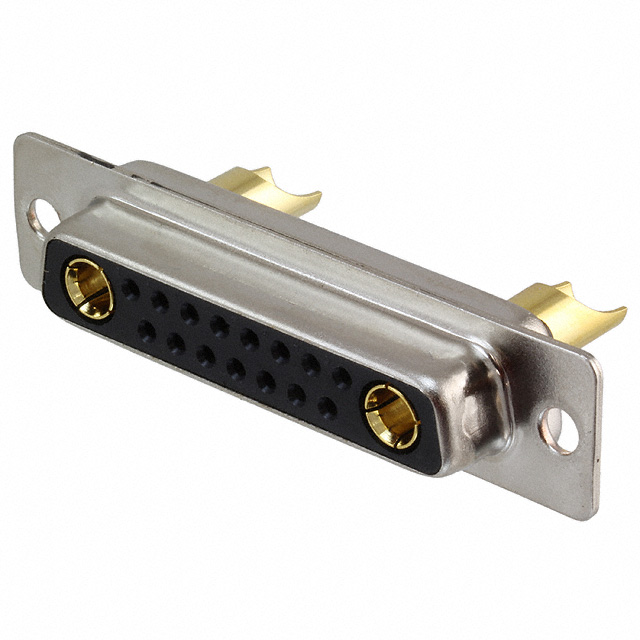

680S17W2203L401
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 680S17W2203L401 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 680S17W2203L401 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 680S17W2203L401 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB RCPT 17POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.943 | $5.519 | $4.952 | $4.811 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.245 | $3.962 | $3.877 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 680S17W2203L401 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB RCPT 17POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7670 pcs | Data sheet | Seal-D® Brochure680S17W2203Lxx1 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) - 17W2 | Shell Material, Finish | Steel, Nickel Plated |
| Series | Seal-D 680S | Packaging | Tray |
| Other Names | NOR1221 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 17 (15 + 2 Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 3A, 40A | Contact Type | Signal and Power |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | - |
