Home > Products > RF/IF and RFID > RF Transceiver Modules > NL-SW-HSPAPG

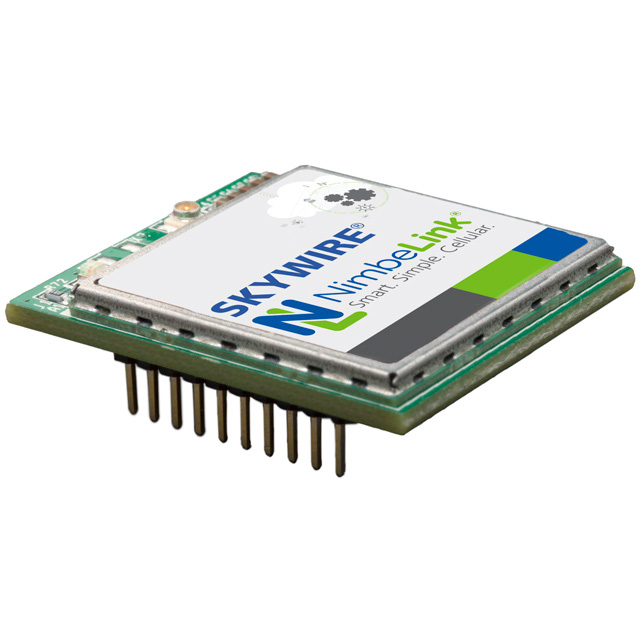

NL-SW-HSPAPG

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NL-SW-HSPAPG with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NL-SW-HSPAPG
Manufacturer	NimbeLink
Description	RF TXRX MOD CELLULAR/NAV U.FL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 659 pcs
Reference Price (In US Dollars)	250 pcs
Reference Price (In US Dollars)	$45.098

Product parameter
Data sheet

Product parameter

Part Number	NL-SW-HSPAPG	Manufacturer	NimbeLink
Description	RF TXRX MOD CELLULAR/NAV U.FL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	659 pcs	Data sheet	Skywire® Modem Errata Skywire® 3G HSPA+ Brief Skywire® HSPA+ HE910 Datasheet
Category	RF/IF and RFID	Voltage - Supply	3.5 V ~ 4.3 V
Utilized IC / Part	-	Series	Skywire™
Serial Interfaces	UART, USB	Sensitivity	-
RF Family/Standard	Cellular, Navigation	Protocol	GPS, HSPA+
Power - Output	-	Packaging	Bulk
Package / Case	20-DIP Module	Other Names	100063G 1477-1017
Operating Temperature	-40°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Modulation	-
Memory Size	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	800MHz, 850MHz, 1.7GHz, 1.9GHz	Data Rate	-
Current - Transmitting	580mA	Current - Receiving	580mA
Antenna Type	Not Included, U.FL
