Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UPM1H561MHD6TN

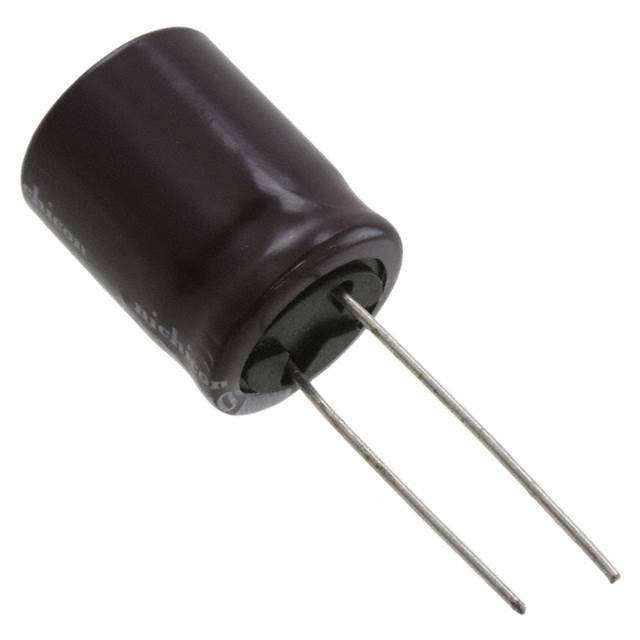

UPM1H561MHD6TN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UPM1H561MHD6TN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UPM1H561MHD6TN
Manufacturer	Nichicon
Description	CAP ALUM 560UF 20% 50V RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	2500 pcs	6250 pcs	12500 pcs
~~In Stock~~ 157242 pcs
Reference Price (In US Dollars)	250 pcs	500 pcs	750 pcs	1250 pcs
	$0.196	$0.166	$0.157	$0.147
	$0.137	$0.132	$0.127

Product parameter
Data sheet

Product parameter

Part Number	UPM1H561MHD6TN	Manufacturer	Nichicon
Description	CAP ALUM 560UF 20% 50V RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	157242 pcs	Data sheet	Miniature Type Taping Spec UPM Series Datasheet
Category	Capacitors	Voltage - Rated	50V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.630" Dia (16.00mm)	Series	UPM
Ripple Current @ Low Frequency	1.27A @ 120Hz	Ripple Current @ High Frequency	1.55A @ 10kHz
Ratings	-	Polarization	Polar
Packaging	Tape & Box (TB)	Package / Case	Radial, Can
Other Names	493-5254-3	Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	31 Weeks	Lifetime @ Temp.	5000 Hrs @ 105°C
Lead Spacing	0.295" (7.50mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	44 mOhms	Height - Seated (Max)	0.866" (22.00mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	560µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Capacitance	560µF	Applications	General Purpose
