Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UPM1H561MHD

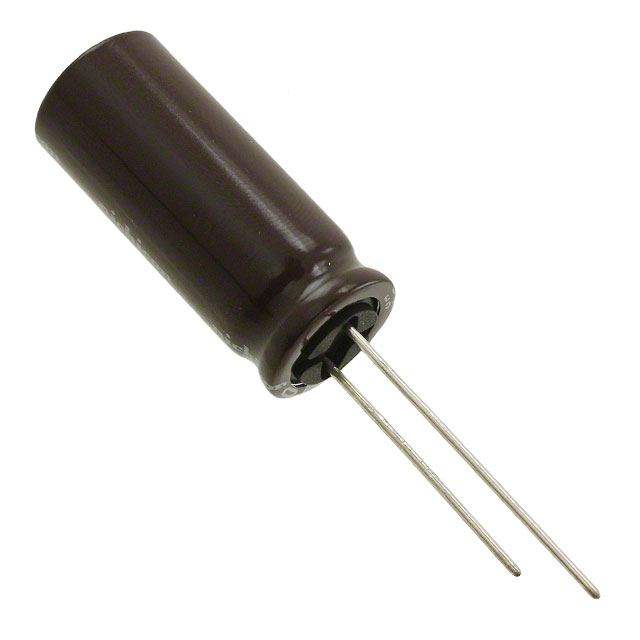

UPM1H561MHD

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UPM1H561MHD with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UPM1H561MHD
Manufacturer	Nichicon
Description	CAP ALUM 560UF 20% 50V RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	1000 pcs	2500 pcs	5000 pcs
~~In Stock~~ 168118 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
	$0.383	$0.301	$0.226	$0.171
	$0.151	$0.141	$0.136

Product parameter
Data sheet

Product parameter

Part Number	UPM1H561MHD	Manufacturer	Nichicon
Description	CAP ALUM 560UF 20% 50V RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	168118 pcs	Data sheet	Miniature Type Taping Spec UPM Series Datasheet
Category	Capacitors	Voltage - Rated	50V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.492" Dia (12.50mm)	Series	UPM
Ripple Current @ Low Frequency	1.41A @ 120Hz	Ripple Current @ High Frequency	1.72A @ 10kHz
Ratings	-	Polarization	Polar
Packaging	Bulk	Package / Case	Radial, Can
Other Names	493-11124 UPM1H561MHD-ND	Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	21 Weeks	Lifetime @ Temp.	5000 Hrs @ 105°C
Lead Spacing	0.197" (5.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	40 mOhms	Height - Seated (Max)	1.319" (33.50mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	560µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Capacitance	560µF	Applications	General Purpose
