Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UCX1E272MNS1MS

UCX1E272MNS1MS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UCX1E272MNS1MS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UCX1E272MNS1MS
Manufacturer	Nichicon
Description	CAP ALUM 2700UF 20% 25V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 32335 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$1.213	$0.979

Product parameter
Data sheet

Product parameter

Part Number	UCX1E272MNS1MS	Manufacturer	Nichicon
Description	CAP ALUM 2700UF 20% 25V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32335 pcs	Data sheet	UCX Series Chip Type Tape Spec Aluminum Electrolytic Land, Reflow
Category	Capacitors	Voltage - Rated	25V
Tolerance	±20%	Surface Mount Land Size	0.673" L x 0.673" W (17.10mm x 17.10mm)
Size / Dimension	0.630" Dia (16.00mm)	Series	UCX
Ripple Current @ Low Frequency	950mA @ 120Hz	Ripple Current @ High Frequency	1.9A @ 100kHz
Ratings	-	Polarization	Polar
Packaging	Original-Reel®	Package / Case	Radial, Can - SMD
Other Names	493-13588-6	Operating Temperature	-40°C ~ 135°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	24 Weeks	Lifetime @ Temp.	2000 Hrs @ 135°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.866" (22.00mm)	ESR (Equivalent Series Resistance)	40 mOhm
Detailed Description	2700µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 40 mOhm 2000 Hrs @ 135°C	Capacitance	2700µF
Applications	General Purpose

Related products
Related news

Related products

UCX1E182MNS1MS Image

Part#:~~UCX1E182MNS1MS~~
Manufacturers:~~Nichicon~~
Description:~~CAP ALUM 1800UF 20% 25V SMD~~
In Stock:~~40754~~

~~$0.895/pcs~~RFQ

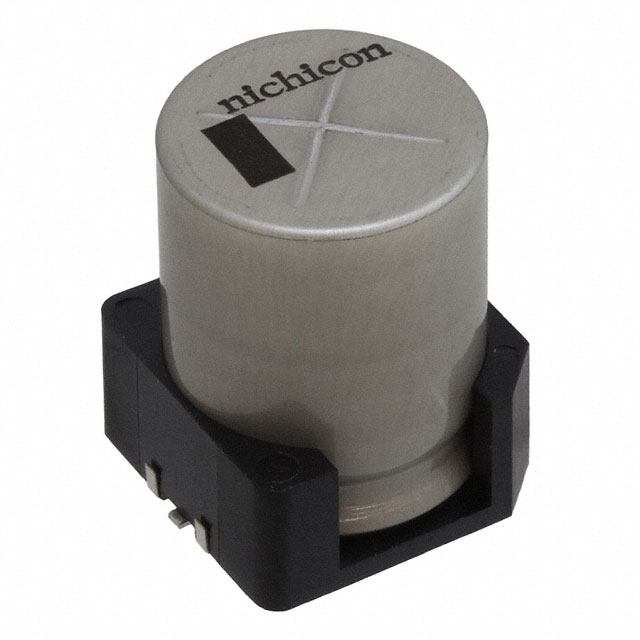

UCX1E272MNQ1MS Image
