Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UCX1E222MNQ1MS

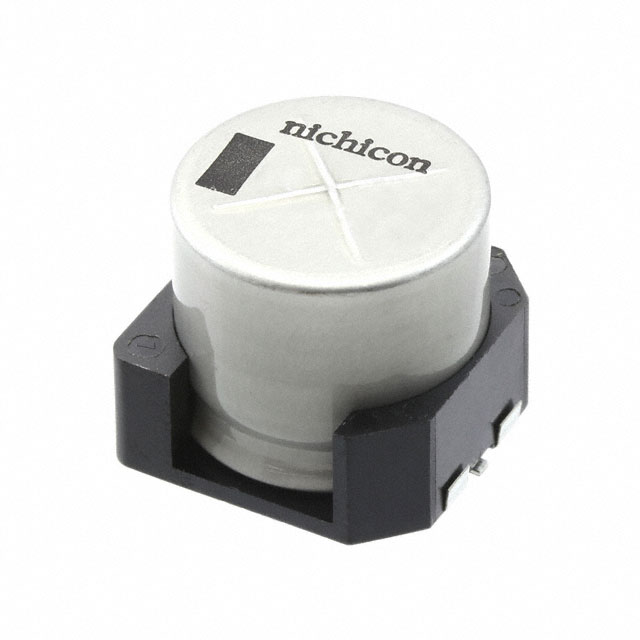

UCX1E222MNQ1MS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UCX1E222MNQ1MS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UCX1E222MNQ1MS
Manufacturer	Nichicon
Description	CAP ALUM 2200UF 20% 25V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	1250 pcs	3125 pcs	6250 pcs
~~In Stock~~ 95179 pcs
Reference Price (In US Dollars)	125 pcs	250 pcs	625 pcs	875 pcs
	$0.626	$0.537	$0.477	$0.447
	$0.418	$0.403	$0.388

Product parameter
Data sheet

Product parameter

Part Number	UCX1E222MNQ1MS	Manufacturer	Nichicon
Description	CAP ALUM 2200UF 20% 25V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	95179 pcs	Data sheet	UCX Series Chip Type Tape Spec Aluminum Electrolytic Land, Reflow
Category	Capacitors	Voltage - Rated	25V
Tolerance	±20%	Surface Mount Land Size	0.752" L x 0.752" W (19.10mm x 19.10mm)
Size / Dimension	0.709" Dia (18.00mm)	Series	UCX
Ripple Current @ Low Frequency	700mA @ 120Hz	Ripple Current @ High Frequency	1.4A @ 100kHz
Ratings	-	Polarization	Polar
Packaging	Tape & Reel (TR)	Package / Case	Radial, Can - SMD
Other Names	493-13586-2 UCX1E222MNQ1GS	Operating Temperature	-40°C ~ 135°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lifetime @ Temp.	2000 Hrs @ 135°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.689" (17.50mm)	ESR (Equivalent Series Resistance)	50 mOhm
Detailed Description	2200µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 50 mOhm 2000 Hrs @ 135°C	Capacitance	2200µF
Applications	General Purpose
