Home > Products > Capacitors > Aluminum - Polymer Capacitors > PCX1H120MCL1GS

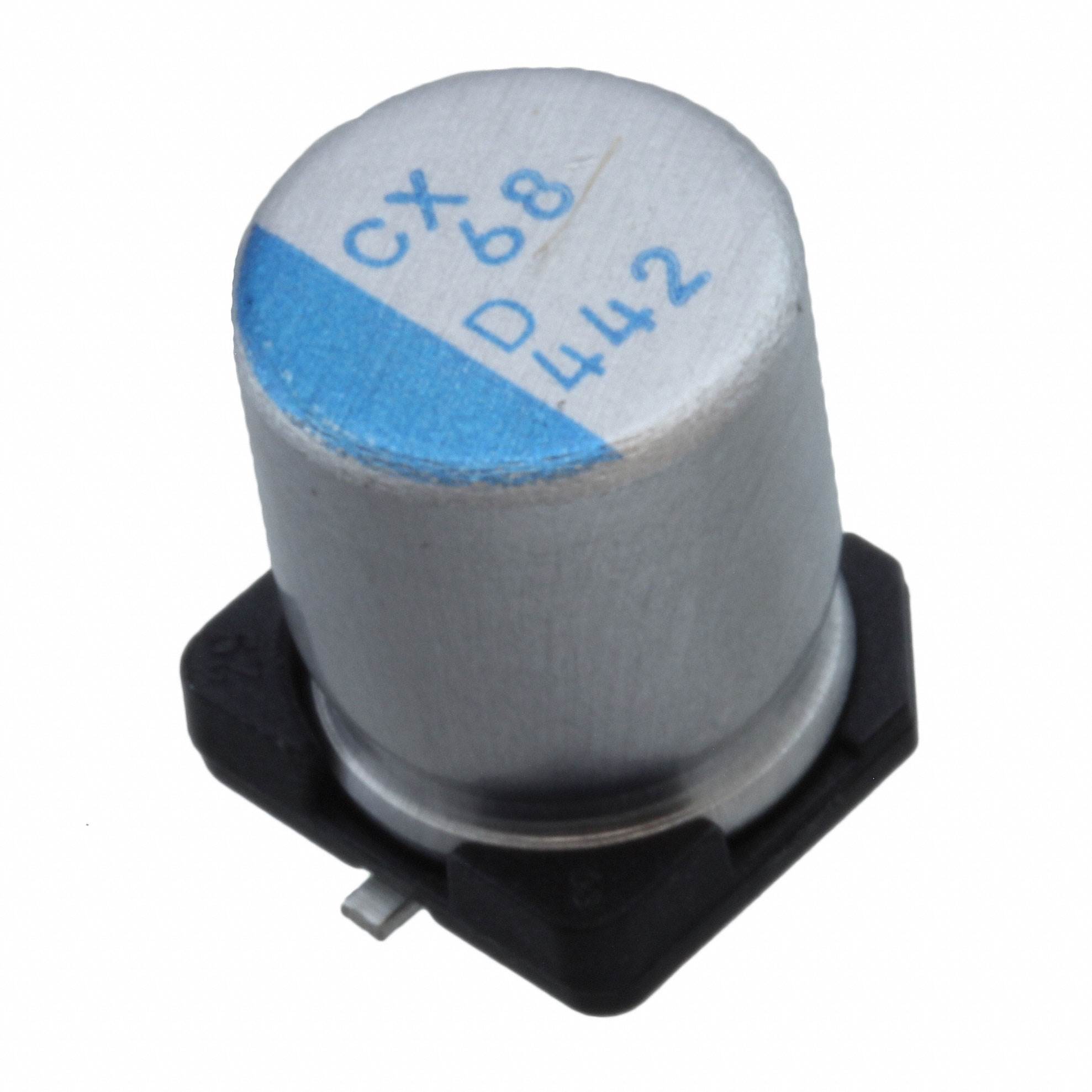

PCX1H120MCL1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCX1H120MCL1GS with confidence from Components-World.HK, 1 Year Warranty

Dowload PCX1H120MCL1GS Details in PDF

Request a Quote

Part Number	PCX1H120MCL1GS
Manufacturer	Nichicon
Description	CAP ALUM POLY 12UF 20% 50V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 73682 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$0.464	$0.365	$0.274

Product parameter
Data sheet

Product parameter

Part Number	PCX1H120MCL1GS	Manufacturer	Nichicon
Description	CAP ALUM POLY 12UF 20% 50V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	73682 pcs	Data sheet	Chip Type Tape Spec Polymer Aluminum Land, Reflow PCX Series
Category	Capacitors	Voltage - Rated	50V
Type	Polymer	Tolerance	±20%
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)	Size / Dimension	0.248" Dia (6.30mm)
Series	PCX	Ripple Current @ High Frequency	1.1A @ 100kHz
Ratings	-	Packaging	Cut Tape (CT)
Package / Case	Radial, Can - SMD	Other Names	493-13708-1
Operating Temperature	-55°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Lifetime @ Temp.	1500 Hrs @ 125°C	Lead Spacing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.319" (8.10mm)
ESR (Equivalent Series Resistance)	65 mOhm	Detailed Description	12µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 65 mOhm 1500 Hrs @ 125°C
Capacitance	12µF	Applications	General Purpose
